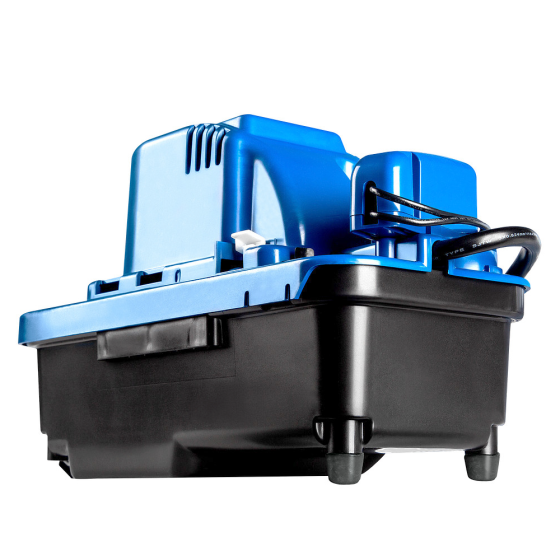

With the slimmest footprint of all Little Giant condensate pumps, the VCMX Series of Condensation Pumps offers the largest installation flexibility. The vertical-type pump features a 3/8" O.D. barbed with 1/4-turn quick release locking discharge adapter with built-in check valve. Three 1-1/8" diameter inlet openings (two fitted with removal cap plugs) allow the pump to be used with multiple types of equipment, including air conditioners and furnace systems.
FEATURES & BENEFITS
• Capacity: 84 gph @ 1' / 115 V • Impeller: Glass-filled Polypropylene • Electrical: 115 Vac • Amps - Full Load: 1.5 A • Full Load Watts: 93 W • Operation: Automatic • HP: 1/30 hp • Frequency: 60 Hz • Cord Length: 6 ft / 1.83 m • Max Flow Rate At 1ft: 1.4 GPM / 84 gph / 318 Lph / 5.3 Lpm / 0.32 m³/h • Max PSIG: 9.1 PSI • Shut-Off: 21 ft / 6.4 m • Safety Switch: YES • Max Fluid Temperature: 140 °F • Pump Base Material: Plastic • Pump Body Material: Plastic • Check Valve: Yes • Discharge Thread: Barb • Discharge Type: Barb • Discharge: 3/8" barbed (9.5 mm) • Product Width: 4.8 " / 12.19 cm • Product Height: 6.5 " / 16.51 cm • Product Length: 10.2 " / 25.91 cm • Product Weight: 5.5 lb. / 2.49 kg • Tubing Included: Yes
