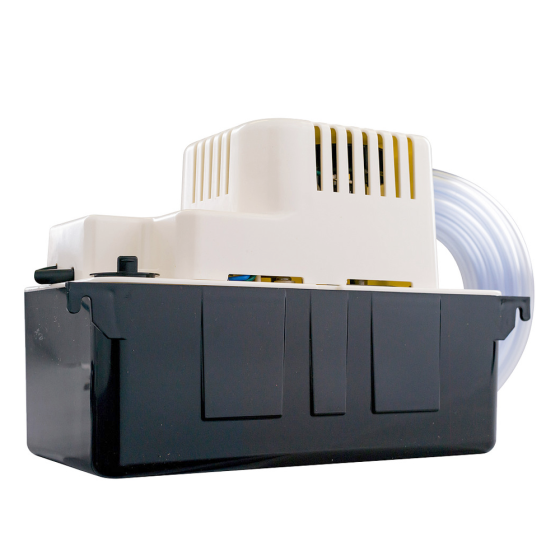

The VCMA-20 Series Condensate Pump is driven by a 1/30 horsepower high-performance motor with a safety switch and features an ABS tank, motor cover, and volute with 20' lift. 20' of 3/8" durable, clear tubing resists crimping or kinking during operation. Includes 6' power cord.
FEATURES & BENEFITS
• Capacity: 80 gph @ 1' • Impeller: Glass-filled Polypropylene • Electrical: 230 Vac • Amps - Full Load: 0.5 A • Full Load Watts: 75 W • Operation: Automatic • HP: 1/30 hp • Frequency: 50/60 Hz • Cord Length: 6 ft / 1.83 m • Max Flow Rate At 1ft: 1.33 GPM / 80 gph / 303 Lph / 5.05 Lpm / 0.3 m³/h • Max PSIG: 7.4 PSI • Shut-Off: 17 ft / 5.18 m • Safety Switch: YES • Max Fluid Temperature: 140 °F • Pump Body Material: Plastic • Impeller Material: GF Polypropylene • Check Valve: Yes • Discharge: 3/8" barbed (9.5 mm) • Product Width: 5 " / 12.7 cm • Product Height: 7 " / 17.78 cm • Product Length: 11 " / 27.94 cm • Product Weight: 6.3 lb. / 2.86 kg • Product Weight w/ Pack: 6.5 lb. / 2.95 kg • Tubing Included: Yes
