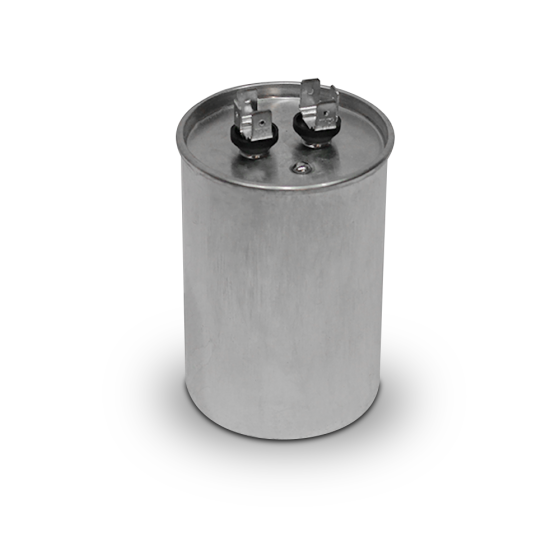

AmRad Round Run Capacitor 60µF, 440v
Item
USA2219
PRODUCT DETAILS
A metallized polypropylene dielectric capacitor encapsulated in a non-toxic, biodegradable patented viscous fluid (LG22™). The container is a metal can (either deep drawn steel or impact extruded aluminum) with a double-rolled cover which provides a leak-proof enclosure.
FEATURES & BENEFITS
• Capacitance: 60µF.• Voltage: 440.
• Capacitance Tolerance: ±6% and ± 10%.
• Temperature Rating: -40°C to 70°C.
| Electrical | |
|---|---|
| Voltage | 440 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Microfarad Rating | 60µF | Cap Type | Run Capacitors |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.750000 | Exterior Dimensions (W) (inches) | 1.750000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.500000 |
