WIFI Residential/Light Commercial Up to 2 Heat, 2 Cool Conventional Up to 5 Heat, 3 Cool Heat Pump, Hardwire Only, 7 Day or Non-Programmable

Item

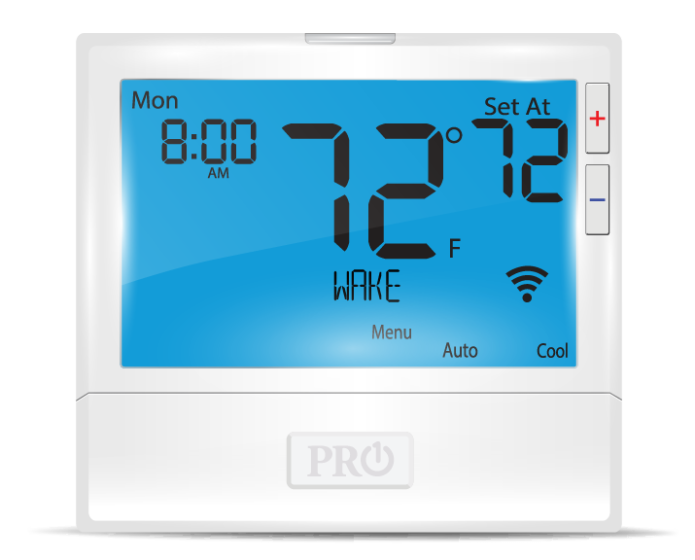

CT855iSH
  • California Prop 65

Specifications:

The display range of temperature
41˚F to 95˚F (5˚C to 35˚C)
The control temperature range
44˚F to 90˚F (7˚C to 32˚C)
Load rating
1 amp per terminal, 1.5 amp maximum all terminals combined
Display accuracy
± 1 °F
Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F
Power source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Hardwire Only
Operating ambient
32° to +105° (O° to + 41°C)
Operating humidity
90% non-condensing maximum
Dimensions of thermostat
4.7"W x 4.4"H x 1.1"D

Product Information:

  • 7 Day or Non-progammable

  • Auto Changeover

  • Easy menu driven programming

  • Intuitive wake, leave, return, sleep programming icons

  • 8 sq. inch display

  • Blue backlight

  • Glow in the dark light button

  • Programmable fan

  • Electric or Gas configurable

  • Room temperature calibration adjustment

  • Separate heating and cooling swing (cycle rate) adjustments

  • Keypad lockout

  • Heating and cooling setpoint limits

  • 5 minute compressor delay protection (selectable on or off)

  • Filter change indicator(selectable on or off)

  • Simple private label badge system

  • Easy wire color coded terminal blocks

  • Universal sub-base

  • Mounts on wall or junction box

  • 24v power

Safety Standards
California Prop 65 Yes
Hazardous Material No
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 1.000000
Exterior Dimensions (W) (inches) 4.700000
Exterior Dimensions (H) (inches) 4.600000
Shipping Weight (lbs) 2.000000
