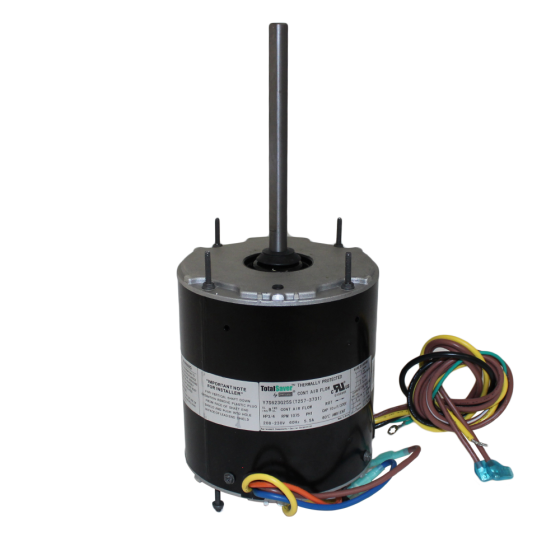

Totaline® TotalSaver® Condenser Fan Motor 3/4HP, 1075RPM, 208/230Vac, 5.5A, 10µF/370Vac, 1 Speed, 60° C, (PSC)
Item
T257-3731
PRODUCT DETAILS
• Suitable for vertical shaft up or horizontal mounting
• Automatic reset thermal protection
• 26” leads
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/4
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 5.5
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.50 x 6.5
| Specification | |
|---|---|
| Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 3/4 | Motor Type | PSC | Number of Speeds | 1 | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 6.5 |
| Electrical | |
|---|---|
| Amps | 5.5 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 15.6 | Exterior Dimensions (D) (inches) | 7.400000 | Exterior Dimensions (W) (inches) | 20.950000 | Exterior Dimensions (H) (inches) | 7.700000 | Shipping Weight (lbs) | 15.600000 |
