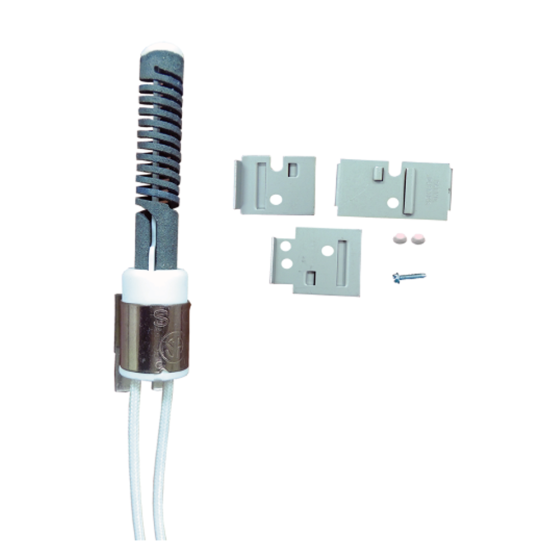

Supco® Universal Silicon Carbide Hot Surface Igniter Kit 120Vac

PRODUCT DETAILS

Universal round silicon carbide igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

FEATURES & BENEFITS

• Universal igniter kit is designed to replace hundreds of OEM part numbers.
• Universal replacement minimizes inventory.
• Superior gas lighting ability.
• Lower power consumption.
• 18 gauge copper high temperature fiberglass insulated lead wires.
• Supco® round igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design.
• Faster time to temperature response.
• Stronger more durable design.
• More robust in transit.
• Higher resistance to oxidation.
• Longer usable life.
• Cold resistance: 40-100 Ohms @ 75°F +/- 10°F
• Amperage: 4 amps @ 132 Vac maximum
• Voltage: 120 Vac
• Time to temperature (1800°F): < 17 seconds @ 120 Vac

INCLUDES

• 1 Igniter
• 3 Mounting Brackets
• 1 Self Tapping Screw
• 2 Porcelain Wire Nuts (The two porcelain wire nuts replace all plastic Molex and AMP connectors on OEM parts.)
