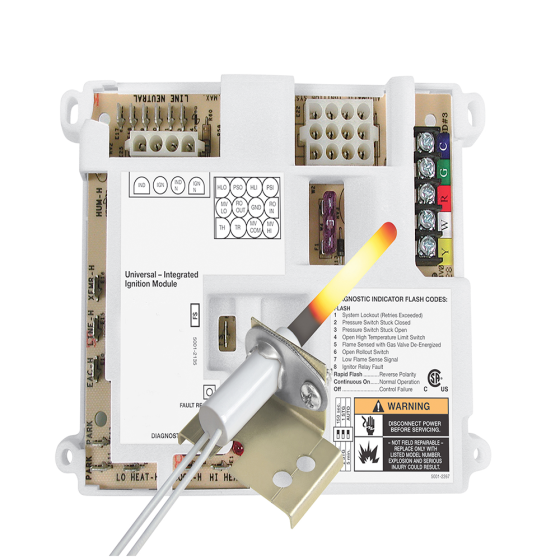

Totaline® Universal Single Stage HSI Integrated Ignition and Furnace Control Kit

FEATURES & BENEFITS

• Fan Speeds: cool, low heat, and high heat (terminal connections)
• System diagnostics with fault recall
• Low voltage fuse protection: 3A replaceable automotive type
• Red LED light (use for diagnostic flash codes)
• Color coded thermostat connection for easy installation
• Optional humidifier and electronic air cleaner connections
• Electrical Rating: 77°F (25°C)
• Input Voltage: 25 VAC 50/60 Hz
• Max Input Current: 25 VAC: 0.45 amp
• Main Valve Relay: 1.5 amps / 25 VAC 60 Hz
• Valve Relay: 1.5 amps / 25 VAC 50/60 Hz 0.6pf
• Ignitor Relay: 6.0 amps /120 VAC 50/60 Hz (resistive)
• Inducer Relay: 2.2 FLA – 3.5 LRA / 120 VAC
• Circulator Relay: 14.5 FLA – 25.0 LRA / 120 VAC
• Minimum current to insure flame detection: 1 μa DC (Measured with a DC micrometer in the flame probe lead)
• Maximum current to non-detection: 0.1 μa DC (Measured with a DC micrometer in the flame probe lead)
• Maximum allowed leakage resistance: 100 M ohms
• Flame Establishing Time (Max): 0.8 seconds
• Flame Failure Response Time(Max): 2.0 seconds
• Operating Temperature Range: -40° to 176°F (-40° to 80°C)
• Mounting: Surface mount multipoise
• Dimensions: 5.25” (w) x 7” (h) x 1.25” (d)
• Gases Approved for use: Natural, Manufactured, Mixed, Liquified Petroleum, and LP Gas-Air Mixtures

INCLUDES

• Ignition control module
• 12 quick select and connect wiring harnesses
• Universal hot surface igniter (P671-1004)
• Installation instructions
