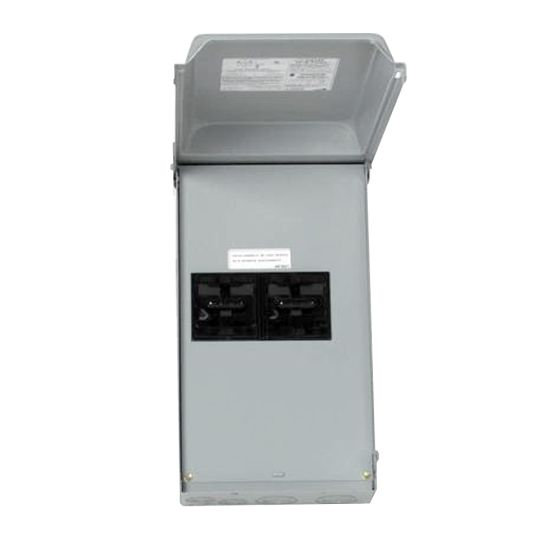

100A Fusible Disconnect 120/240Vac, 1 Phase, NEMA 3R

Item

U610F

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Phase: 1
• Amps: 100 A
• Enclosure: Metallic
• Circuit Protection: Fused Pull-Out
• Receptacles: None
• AIC: 10,000
• Cabinet Size: 9 X 17
• Horse-Power Rating: 10
• Neutral Bar: NU100B2
• Unit Weight: 13.5 lb.
• Volts: 120/240
• Certification: UL/CUL

Specifications

Electrical
Phase	1
Voltage	120/240

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	100

Weights and Dimensions
Operating Weight (lbs)	16.853
Exterior Dimensions (D) (inches)	9.060000
Exterior Dimensions (W) (inches)	10.300000
Exterior Dimensions (H) (inches)	21.310000
Shipping Weight (lbs)	26.000000

Resources

U610F_DRAWING.pdf

U610F_TDS.pdf
