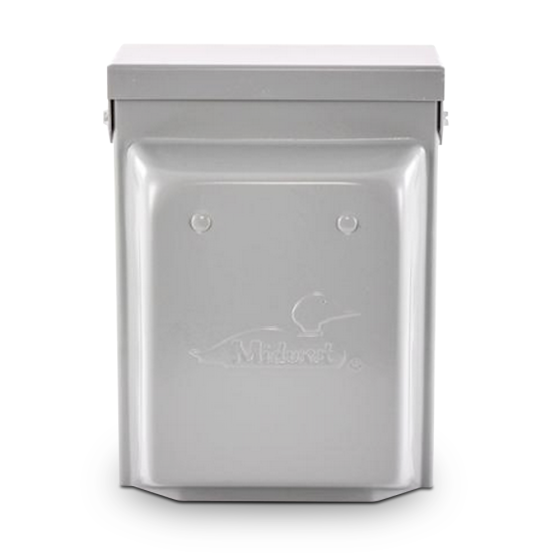

40A Fusible Disconnect 120/240Vac, 1 Phase, 20A GFI Receptacles, NEMA 3R

Item

U261F

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Phase: 1
• Amps: 40 A
• Enclosure: Metallic
• Circuit Protection: Type S Fuse Holder
• Receptacles: 14-20R, 5-20R2
• AIC: 10,000
• Cabinet Size: 6 X 9
• Horse-Power Rating: N/A
• Neutral Bar: None
• Unit Weight: 6.5 lb.
• Volts: 120/240
• Certification: UL/CUL

Specifications

Electrical
Phase	1
Voltage	120/240

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	40

Weights and Dimensions
Operating Weight (lbs)	6
Exterior Dimensions (D) (inches)	5.000000
Exterior Dimensions (W) (inches)	5.750000
Exterior Dimensions (H) (inches)	7.750000
Shipping Weight (lbs)	12.000000

Resources

U261F_DRAWING.pdf

U261F_TDS.pdf
