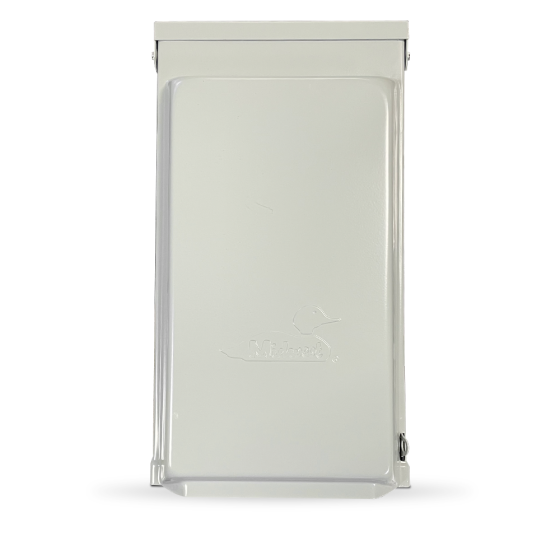

90A Fusible Disconnect 120/240Vac, 1 Phase, NEMA 3R

Item

U045F

FEATURES & BENEFITS

• Phase: 1
• Amps: 90 A
• Enclosure: Metallic
• Circuit Protection: Fused Pull-Out
• Receptacles: None
• AIC: 10,000
• Cabinet Size: 9 X 17
• Horse-Power Rating: 10
• Neutral Bar: NU100B2
• Unit Weight: 13.5 lb.
• Volts: 120/240
• Certification: UL/CUL

Specifications

Electrical
Phase	1
Voltage	120/240

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	90

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	5.190000
Exterior Dimensions (W) (inches)	9.750000
Exterior Dimensions (H) (inches)	17.380000
Shipping Weight (lbs)	20.000000

Resources

U045F_DRAWING.pdf

U045F_TDS.pdf
