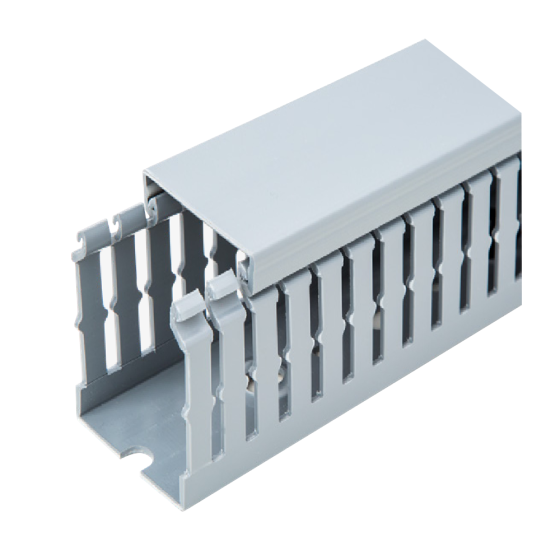

Ty-Duct® Wire Duct, 1" Wide, 3" Height, 6' (Gray)
APPLICATIONS
ABB’s innovative Ty-Duct products offer a total solution for routing and concealing wiring in control panels. Many different sizes are available to accommodate anything from the smallest wall-mount panel to larger integrated systems.
FEATURES & BENEFITS
• Cover not included
• UL Recognized continuous-use temperature from -40 °C (-40 °F) up to 60 °C (140 °F)
• UL flammability rating of UL94V-0
• CE compliant
• RoHS compliant
• Wide fingers and slots increase rigidity and enable insertion of bundles.
• V-Shaped slot lead-in enables easier and faster wire installation.
• Rounded edges keep hands and wires free of abrasion.
• Non-slip cover does not slide easily and resists vibration.
• Flush cover attaches flush with sidewall for finished look.
• Dual score lines are designed to yield clean breakoffs at the base of the slot and the duct.
• Versatile North American and DIN Standard mounding holes enables same duct for multiple applications.
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 72.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 5.000000 |
