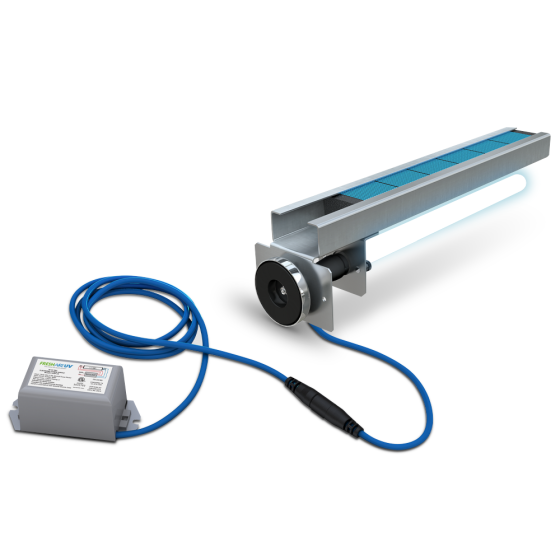

Fresh-Aire UV® APCO Magnetic In-Duct Germicidal UV Air Purifier 24Vac, 15" (2 Year Bulb)

APPLICATIONS

APCO® cleans the air by combining UVC light and activated carbon; two technologies proven to be most effective at killing germs and removing odors by reducing chemical vapors known as volatile organic compounds (VOCs). Some of them, like formaldehyde and acetone, are known to be toxic.

Conventional filters are only effective against particulates, like dust. APCO® is proven to safely reduce both biological and chemical contaminants inside the air system and throughout the building. Together, they address 99+% of the contaminants in the air.

FEATURES & BENEFITS

• APCO® utilizes proprietary UV-reactive carbon cells to disinfect the air and neutralize odors and volatile organic compounds (VOCs) in the indoor air. The system uses specially prepared adsorption media to capture VOCs, then, with the help of a 254 nm germicidal UVC lamp, the captured constituents are neutralized through an innovative reaction process which breaks them down into elemental carbon dioxide and water vapor.
• The monolithic carbon cells in APCO ® are regenerative. Under normal operation it requires no maintenance and does not need to be replaced. Additionally, the UVC light in APCO® disinfects the moving air stream reducing airborne mold, bacteria, and viruses. The UV light also reduces any buildup of mold within the air handler and ducts.
• UV Lamp: 254 nm Germicidal UVC Spectrum Quartz Hot Filament
• PCO Cell: Advanced Monolithic Adsorptive PCO cell with proprietary absorption media and proven TiO2 photo-catalyst.
• Cell per In²: 16
• Cell Surface Area: 250 m²/gm
• Bulk Density: 1.44 gm/cm²
• Pressure Drop: <0.01” w.c. @ 400 FPM
• VOC Activity: 40-60% absorption per pass
• Max Operating Temp.: 400 °F
• High or low-voltage remote power supply
• Input Voltage: 18-32 VAC
• 60 Hertz
• 0.68 Amps (16Va)
• Low-voltage power-supply
• Removable magnet for internal mounting
• Ideal for package units
• Dimensions: 5.5”W x 4”H x 17”D
• Replacement Bulb: 2 Year Bulb - TUVL-215P
• Warranty: Lifetime for all parts except lamp
