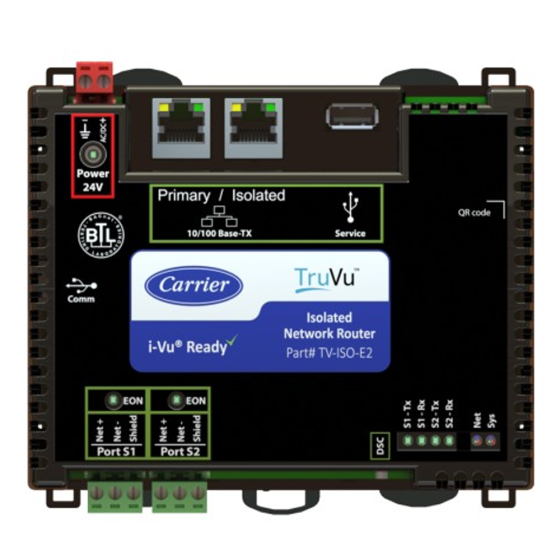

Carrier’s TruVu Isolated Network Router is the essential router that connects diverse BACnet networks (IP, Ethernet, BACnet Secure Connect, and MS/TP). It provides a critical security layer, isolating your building automation network from external IP traffic. This ensures reliable BACnet communication and enhances security, reducing IT complexity and providing a robust foundation for your building automation system.
FEATURES & BENEFITS
Enhanced Network Security
• Isolates the building automation network from the broader customer network, creating a robust security layer (firewall) designed to significantly reduce the risk of unauthorized access and mitigate various cyber threats.
IT Friendly
• Only one IP address required to connect to all the devices on the isolated network.
Streamlined Deployment
• Includes a built-in DHCP server that automatically assigns isolated IP addresses, simplifying network configuration and reducing installation time.
Robust Routing Capability
• Seamlessly integrate your system by routing BACnet across all common network types, including IP, Ethernet, BACnet Secure Connect (SC), and MS/TP, ensuring compatibility with both existing and future infrastructure.
Flexible Network Connections
• Includes 1 primary Ethernet port for IP/Ethernet/SC , 1 isolated Ethernet port for BACnet/IP, and 2 EIA-485 ports (both for BACnet MS/TP only).
Easy Configuration and Recovery
• A dedicated USB port for system setup.
Advanced Diagnostics
• Captures network data and statistics for efficient troubleshooting and optimizing system performance.
Optimized Broadcast Communication
• Functions as a BACnet Broadcast Management Device (BBMD) to manage broadcast communication efficiently on BACnet/IP networks, reducing traffic, and improving response times.
Simplified BACnet Device Integration
• Supports Foreign Device Registration (FDR), enabling automatic discovery and registration of third-party BACnet devices to streamline communication within the BACnet network.
Compact Footprint
• Designed for easy installation, optimizing control panel space.
SPECIFICATIONS
BACnet Conformance
• Conforms to the BACnet Router (B-RTR) Standard Device and BACnet Broadcast Management Device (B-BMD). Tested to and listed to Protocol Revision 19 (135-2016).
i-Vu Version
• Compatible with i-Vu Version 9.0 or later
Power Requirements
• 24VAC ± 10%, 50-60Hz, 50 VA
• 24VDC ± 10%, 18W
Communication Ports
• Primary Port
○ 10/100 BaseT, full duplex, Ethernet ports for BACnet/IP, BACnet/IPv6, BACnet/Ethernet, BACnet/SC communication.
• Isolated Port
○ 10/100 Mbps BaseT, full duplex, Ethernet port for BACnet/IP
• Port S1
○ High-speed EIA-485 port for communication with BACnet MS/TP network at 9,600 to 115,200 bps
• Port S2
○ High-speed EIA-485 port for communication with a BACnet MS/TP network at 9,600 to 115,200 bps. End of Net termination can be set to Yes to terminate the network segment.
• Service Port
○ USB 2.0 port for setting up the router and troubleshooting through a local connection to a computer, connecting to the Equipment Touch, or a wireless service adapter.
Protection
• Device is protected by a replaceable, fast acting, 250 Vac, 3A, 5mm x 20mm glass fuse. The power and network ports comply with the EMC requirements EN50491-5-2
Real-Time Clock
• Real-time clock keeps track of time in the event of a power failure for up to 3 days.
LED Status Indicators
• Tricolor NET LED to show network status / Tricolor SYS LED to show system status/POWER LED/S1 EON LED/S2 EON LED/A TX (Transmit) and RX (Receive) LED for: Port S1 and Port S2
Router Addressing
• Webserver interface
Environmental Operating Range
• -40 to 158°F (-40 to 70°C), 10–95% relative humidity, non-condensing.
• The TV-ISO-E2 can be installed both inside and outside the building envelope. It should be placed in a UL listed enclosure. If installed outside, the enclosure must be suitable for the environmental conditions.
Compliance
• United States
○ FCC compliant to Title CFR47, Part 15, Subpart B, Class A. UL Listed, File E143900; CCN PAZX, UL916, Energy Management Equipment; UL Listed to UL864: Smoke Control System. AS/NZS: RCM Mark 61000-6-3
• Canada
○ UL Listed File E143900, CCN PAZX7, CAN/CSA C22.2 No. 205 Signal Equip., Industry Canada Compliant, ICES-003, Class A; UL Listed to ULC-S527: Smoke Control System.
• Europe/UKCA
○ CEN50491-5-2:2009; Part 5-2: Compliant with Electromagnetic Compatibility Regulations - Gov. UK and RoHS for Electrical and Electronic Equipment 2012 RoHS Compliant: 2015/863/EU REACH Compliant
