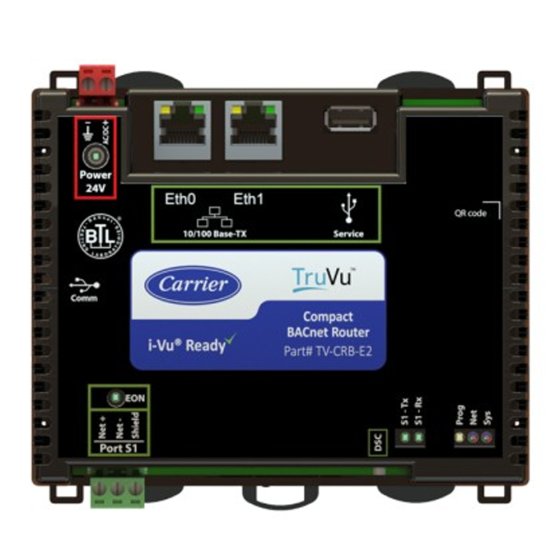

The TruVu Compact Router (TV-CRB-E2) features dual IP ports for convenient daisy-chain deployment and offers robust routing capabilities between BACnet®/IP, BACnet Ethernet, and BACnet MS/TP networks. It also features a compact footprint for more flexible system design.
FEATURES & BENEFITS
Hardware Features
• Supports IPv4
• Two 10/100 Mbps ethernet ports with fail-safe relay
• One optically isolated MS/TP port, supporting speeds from 9.6 to 115.2 Kbps
• USB service port for local service: connect PC via a hard-wired connection or wirelessly using a USB-W adapter
• Compact footprint simplifies installation and optimizes panel space
BACnet Features
• BACnet Testing Laboratories (BTL) certified
• Conforms the BACnet Router B-RTR and BBMD standard device profile
• Supports BACnet routing between BACnet/IP, BACnet/Ethernet and BACnet/MSTP networks
• Can serve as a BACnet Broadcast Management Device (BBMD)
• Connects seamlessly to the i-Vu Building Automation System
SPECIFICATIONS
BACnet Support
• Conforms to the BACnet Router (B-RTR) and BACnet Broadcast Management Device (B-BBMD) Standard Device Profile as defined in ANSI/ASHRAE Standard 135-2016 (BACnet) Annex L, Protocol Revision 15
Power Requirements
• 24VAC ± 10%, 50-60Hz, 50 VA
• 26VDC ± 10%, 18W
Communication Ports
• Eth0,Eth1
○ 10/100 BaseT, full duplex, Ethernet ports with built-in fail safe. Supports direct connection or daisy chain topology natively using BACnet/IP and/or BACnet Ethernet communication.
• Port S1
○ EIA-485 port for BACnet MS/TP communication network at 9,600 to 115,200 bps An End of Net switch can be turned on to terminate the network segment.
• Service port
○ USB 2.0 host port for setting up the router and troubleshooting through a local connection to a computer, connecting to the TruVu™ Equipment Touch, or the Carrier USB Wireless service adapter.
Protection
• Device is protected by a replaceable, fast acting, 250Vac, 3A, 5mm x 20mm glass fuse. The power and network ports comply with the EMC requirements EN50491-5-2.
Real-Time Clock
• Real-time clock keeps track of time in the event of a power failure for up to 3 days.
LED Status Indicators
• Tricolor NET LED to show network status / Tricolor SYS LED to show system status/POWER LED/S1 EON LED/A TX (Transmit) and RX (Receive) LED for: Port S1
Router Addressing
• Webserver interface
Environmental Operating Range
• -40 to 158°F (-40 to 70°C), 10-95% relative humidity, non-condensing
• The TV-CRB-E2 is suitable for installation inside or outside the building envelope. It should be placed in a UL Listed enclosure. If installed outside, the enclosure must be suitable for the environmental conditions.
Compliance
• United States of America
○ FCC compliant to Title CFR47, Chapter 1, Subchapter A, Part 15, Subpart B, Class A; UL Listed to UL 916, PAZX, Energy Management Equipment
• Canada
○ Industry Canada Compliant, ICES-003, Class A cUL Listed UL 916, PAZX7, Energy Management Equipment; EN50491-5-2:2009; Part 5-2: EMC requirements for HBES/BACS used in residential, commercial and light industry environment RoHS Compliant: 2015/863/EU REACH Compliant
