TRS AIREX RETROFIT PRO-SYSTEM KIT™ for 3/4" Wall Thickness Pipe Insulation with 5/8", 3/4" or 7/8" Tube (Gray/Black)

FEATURES

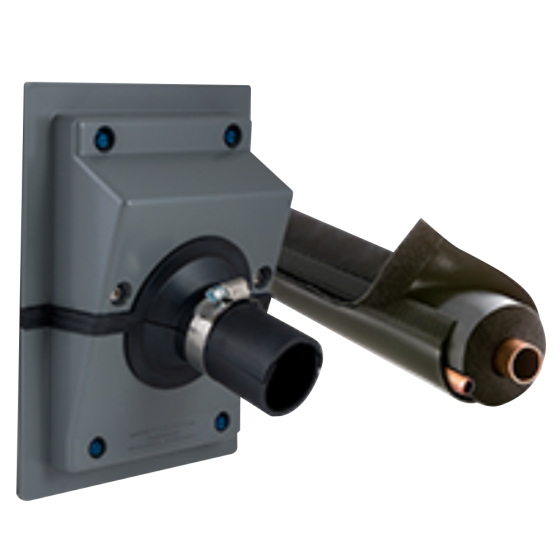

The AIREX PRO-SYSTEM KIT™ is a 2-in-1 system used to gasket seal HVACR piping penetrating through exterior walls from air leakage (AIREX TITAN OUTLET™) and to protect pipe insulation from outdoor weather and physical damage (AIREX E-FLEX GUARD™). The AIREX TITAN OUTLET™ mechanically fastens to exterior vertical wall surfaces while its elastomeric sleeve secures and isolates HVACR piping for mechanical vibration. The AIREX E-FLEX GUARD™ protective jacket mechanically connects to the TITAN OUTLET’s wall sleeve with a stainless-steel clamp, supplying a complete pipe protection system to achieve optimal HVACR performance and long-term durability.

Utilize the AIREX PRO-SYSTEM KIT™ to aesthetically meet mandatory building requirements and energy efficiency standards.

• 2-in-1 kit includes all you need to achieve a mechanical wall seal and

• superior outdoor insulation protection

• Long-lasting with 10-year warranty, removable & reusable

• Sustainable energy savings (BEST OF IBS Award Finalist, Best Energy Efficient Product)

• Meets mandatory building, energy, residential, mechanical, and green codes

• Impermeable to water, yet has needed permeability to vapor (Class II Vapor Retarder)

• Rodent proof

• Controls damaging pipe vibration

• Works with both central and ductless installations

• Made in the USA

SPECIFICATIONS

• Size: 3/4" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube or 3/4" wall thickness pipe insulation with 1-1/8" tube

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	7
Exterior Dimensions (D) (inches)	10.000000
Exterior Dimensions (W) (inches)	10.000000
Exterior Dimensions (H) (inches)	10.000000
Shipping Weight (lbs)	7.000000

Resources

TRS-675G-72CB_Installation.pdf

TRS-675G-72CB_SDS.pdf

TRS-675G-72CB_Submittal.pdf

TRS-675G-72CB_Warranty.pdf
