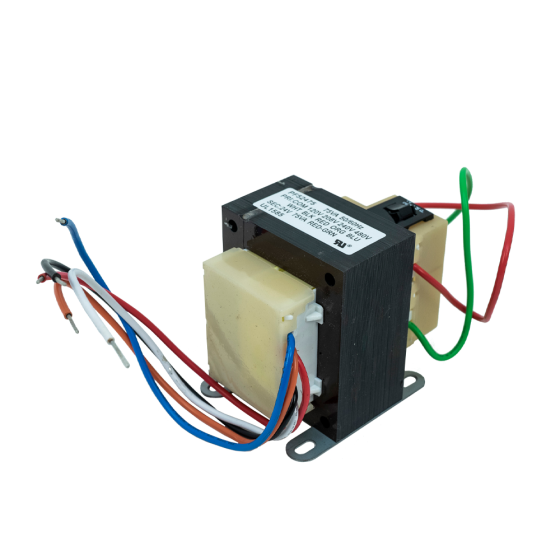

Transformer 120/208/240/480v Primary, 24v Secondary, 75va
Item
PF52475
FEATURES & BENEFITS
• Packard transformers will replace models with equal or lower VA rating..• Wire Leads.
• Foot Mount.
• Class II Transformer.
• Equipped With a 3.2 Amp Circuit Breaker.
• Input Voltage: 120/208/240/480Vac.
• Secondary Voltage: 24Vac.
• VA Rating: 75VA.
• Transformer Mounting Option: Foot.
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Primary Voltage | 120/208/240/480Vac | Secondary Voltage | 24Vac | Va Rating | 75Va |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 2.000000 |
