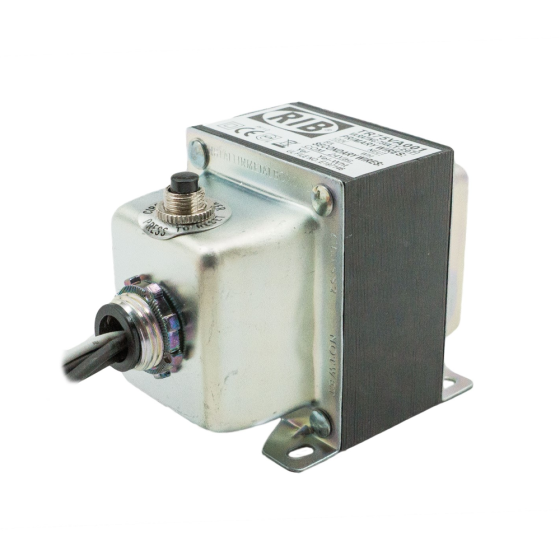

Transformer 120Vac Primary, 24Vac Secondary, 75Va
Item
TR75VA001
FEATURES & BENEFITS
• VA Rating: 75.• Frequency: 50/60 Hz.
• Mounting: Foot & Single Threaded Hub.
• Over Current Protection: Circuit Breaker.
• Dimensions: 3.743 ̋ x 2.506 ̋ x 3.016 ̋ (w/ .500 ̋ NPT Hub).
• Wire Length: 9.5 ̋ Typical w/ .5 ̋ Strip.
• Operating Temperature: -30 to 140° F.
• MTBF: 100,000 Hours @ 77° F.
• Construction: Split-Bobbin.
• Approvals: Class 2 UL5085-3 Listed, C-UL, CE, RoHS.
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Va Rating | 75Va | Secondary Voltage | 24Vac | Primary Voltage | 120Vac |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 5.000000 |
