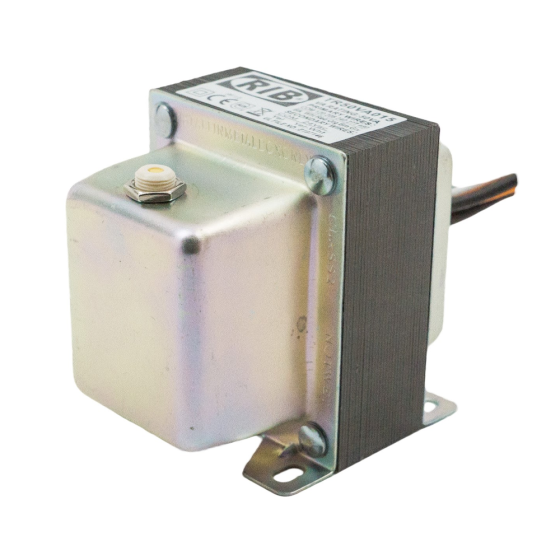

Transformer 120/208/240/277/480Vac Primary, 24Vac Secondary, 50Va
Item
TR50VA015
FEATURES & BENEFITS
• VA Rating: 50.• Frequency: 50/60 Hz.
• Mounting: Foot & Single Threaded Hub.
• Over Current Protection: Circuit Breaker.
• Dimensions: 3.405 ̋ x 2.517 ̋ x 3.013 ̋ (w/ .500 ̋ NPT Hub).
• Wire Length: 9.5 ̋ Typical w/ .5 ̋ Strip.
• Operating Temperature: -30 to 140° F.
• MTBF: 100,000 Hours @ 77° F.
• Construction: Split-Bobbin.
• Approvals: Class 2 UL5085-3 Listed, C-UL, CE, RoHS.
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Va Rating | 50Va | Secondary Voltage | 24Vac | Primary Voltage | 120/208/240/277/480Vac |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2.8 | Exterior Dimensions (D) (inches) | 3.405000 | Exterior Dimensions (W) (inches) | 2.517000 | Exterior Dimensions (H) (inches) | 3.013000 | Shipping Weight (lbs) | 5.000000 |
