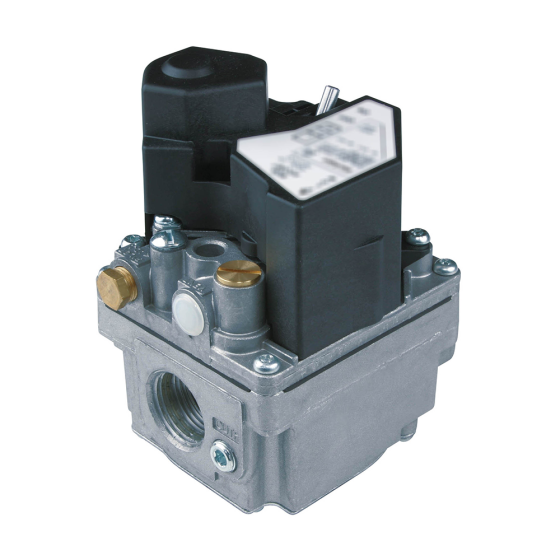

Totaline® Universal Direct Burner/Proven/Intermittent Pilot Gas Valve - 3/4" x 3/4"- Single Stage - 24Vac
Item
P671-2369
FEATURES & BENEFITS
• Valve Type: Direct Burner / Proven / Intermittent Pilot• Gas Type: Natural Gas / Liquid Propane (Bottom Outlet)
• Single Stage
• Opening Style: Fast
• Inlet/Outlet Size: 3/4" x 3/4"
• Coil Voltage: 24Vac
• Pressure Regulator Setpoint: 3.5" w.c.
• Regulator Adjustment Range: Nat 2.5" - 5.0" (L.P. 7.5" - 12.0")
| Specification | |
|---|---|
| Gas Connection Size | 3/4" x 3/4" |
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 12.000000 | Shipping Weight (lbs) | 5.000000 |
