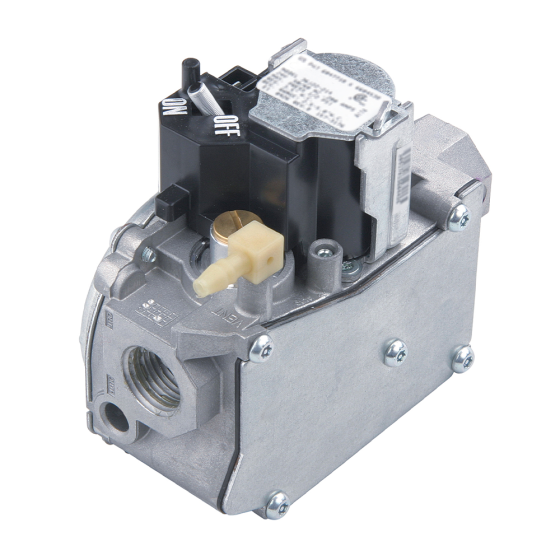

Totaline® Universal Direct Burner Gas Valve - 1/2" x 1/2" - Single Stage - 24Vac
Item
P671-2367
FEATURES & BENEFITS
• Valve Type: Direct Burner• Gas Type: Natural Gas / Liquid Propane (Bottom Outlet)
• Single Stage
• Opening Style: Fast
• Inlet/Outlet Size: 1/2" x 1/2"
• Coil Voltage: 24Vac
• Pressure Regulator Setpoint: 3.5" w.c.
• Regulator Adjustment Range: Nat 2.5" - 5.0" (L.P. 7.5" - 12.0")
| Specification | |
|---|---|
| Gas Connection Size | 1/2" x 1/2" |
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 12.000000 | Shipping Weight (lbs) | 5.000000 |
