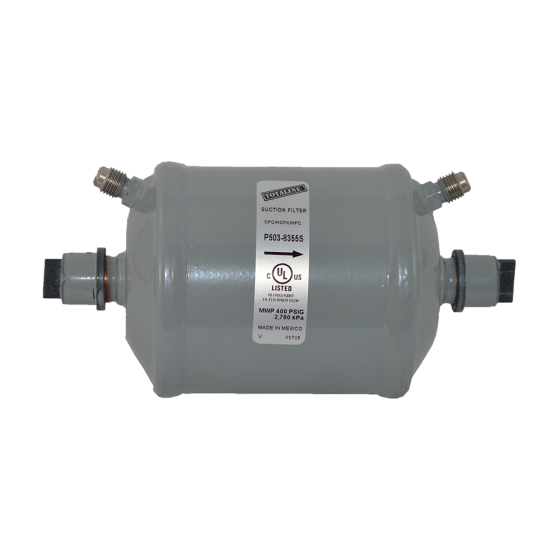

Totaline Suction Line Filter Drier 5/8" ODF 35cu. in. (Beaded Core)
Item
P503-8355S
PRODUCT DETAILS
Premium suction line filter drier for moisture, acid & contaminant removal.
For use with CFC, HCFC, and HFC refrigerants.
Totaline’s P503-8 Series is a high capacity suction line filter drier that incorporates beaded desiccant plus a filter.
FEATURES & BENEFITS
• Solid copper fittings.• Dual Access Valves.
• Corrosion Resistant Paint Finish.
• High Filtration Capacity.
• Filtration: 40 microns
• Maximum Working Pressure: 500 psig
• UL/CUL File Number: SA3124
• Desiccant Volume: 35cu. in.
• Connection Inlet Size: 5/8" ODF
• Connection Outlet Size: 5/8" ODF
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 10.000000 |
