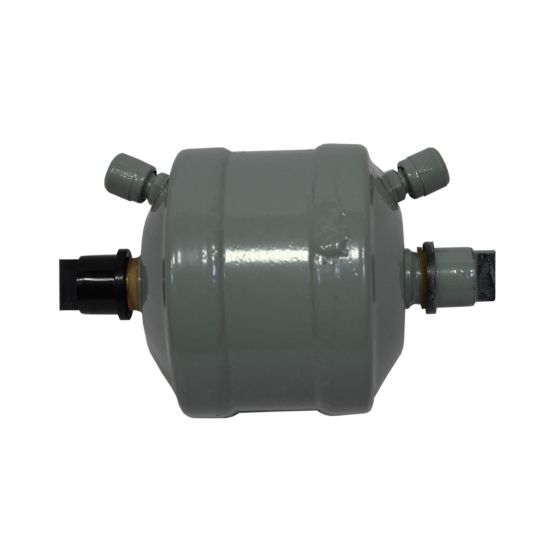

Totaline Suction Line Filter Drier 5/8" ODF 13.5cu. in. (Beaded Core)
Item
P5038135SSFD
PRODUCT DETAILS
Totaline standard compacted bead suction filter drier for use after burnout or when contaminant removal.
For use with CFC, CHFC, & HFC refrigerants.
Suction line filter drier used for moisture, acid and contaminant removal.
FEATURES & BENEFITS
• Corrosion Resistant Epoxy Powder Paint Finish.• Solid Copper Fittings
• Dual Access Valves
• Max Working Pressure: 400 psig
• Filtration: 40 microns.
• UL & CSA Approved: UL file number: SA3124, CSA file numbers: LR100624, LR32462.
• Desiccant Volume: 13.5cu. in.
• Connection Inlet Size: 5/8" ODF
• Connection Outlet Size: 5/8" ODF
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 12.000000 | Shipping Weight (lbs) | 2.000000 |
