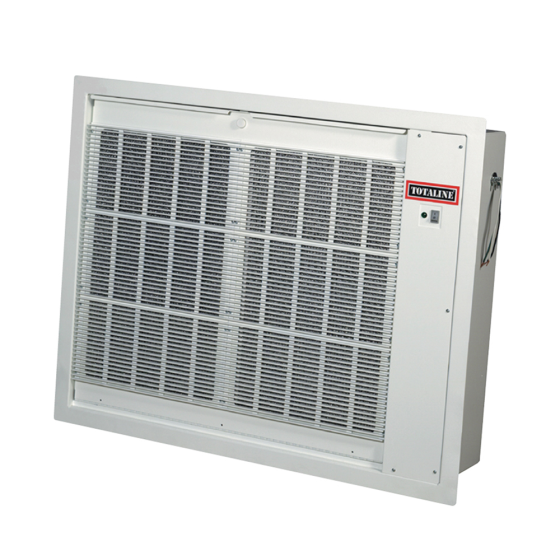

Totaline® Return Grille Mounted Electronic Air Cleaner 120Vac, 2,000CFM

APPLICATIONS

The Totaline High Efficiency Return Grille Mount Electronic Air Cleaner has been designed to remove atmospheric and household dust, coal dust, insecticide dust, mites, pollen, mold spores, fungi, bacteria, viruses, pet dander, cooking smoke and grease, tobacco smoke particles, and more down to 0.01 micron (0.01 micron = 1/2,540,000 of an inch).

Contains a lifetime filter that is environmentally friendly and preferable to disposable filters.

Designed for homes, condominiums, manufactured homes and applications where there is a common return grille rather than separate return air ducts from each room.

Larger homes with more than one return grille may require an additional return grille air cleaner to greatly improve indoor air quality.

Perfect for homes with attic or crawl space heating and air conditioning installations, allowing easy access to filters on the main floor.

Easily installs on the wall or ceiling in a ceiling box within trusses on 24 inch centers, without any structural changes.

Ideal for homes with allergy, asthma or respiratory sufferers, smokers, pets, cooking odors, and mustiness.

Helps protect and prolong the operating efficiency of the heating and cooling equipment.

FEATURES & BENEFITS

• Maximum Airflow (CFM): 2000
• Duct Size: 22" x 29.1"
• Cabinet Dimensions: 31.4" x 24.4" x 7"
• Weight: 37 lbs.
• Input Voltage: 120Vac
• 60Hertz
• Power Consumption (Watts): 30
• Prefilters (2) are constructed of aluminum mesh, to prevent lint and large particles from entering the collecting cells.
• Collecting Cells (2) are constructed of heavy gauge aluminum for durability and ease of maintenance.
• Plastic intake Grille is easy to wipe clean.
• Hinged, Swing Out Door allows easy access to filters.
• Automatic Interlock Switch disconnects power when unit is opened.
• Electronic Air Proving Switch (AS) allows for quick wiring. Automatically cycles Air Cleaner on/off with the system fan.
• Performance Indicator Light (Green LED) indicates high voltage to the collecting cells, ensuring air cleaner is operating properly at a glance.
• Solid State Power Board is manufactured on-site for high reliability and long life.
• Uniquely equipped with a variable resistor (potentiometer) to adjust high voltage output, if necessary.
• Durable powder coat paint finish on heavy gauge steel resists abrasion and provides trouble-free wall or ceiling installation. Holes are provided to facilitate mounting to the duct work.
• Five Year Limited Parts.
• Replacement Media:
Prefilter - G8-0855
Collecting Cell - G8-0400
