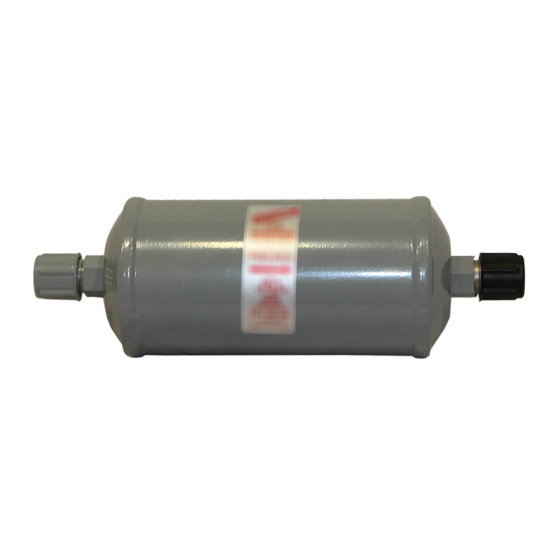

Totaline Liquid Line Filter Drier 5/8" SAE Male Flare 41cu. in. (Beaded Core)

FACTORY AUTHORIZED PART BENEFITS

• Meets exact part design life testing for maximum reliability and durability.
• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.

PRODUCT DETAILS

Compacted bead filter drier, with a fine 20 Micron outlet pad for maximum filtration.

Universal Replacement for CFC, HCFC, and HFC Refrigerants.

Filtration first for more effective use of surface area of desiccant.

Solid copper connection for easy installation.

FEATURES & BENEFITS

• Filtration: 20 microns
• Maximum working pressure: size 03-75 680 psig
• Desiccant blend – 75% molecular sieve and 25% activated alumina for high moisture and acid capacity
• Desiccant Volume: 41cu. in.
• Connection Inlet Size: 5/8" SAE Male Flare
• Connection Outlet Size: 5/8" SAE Male Flare
