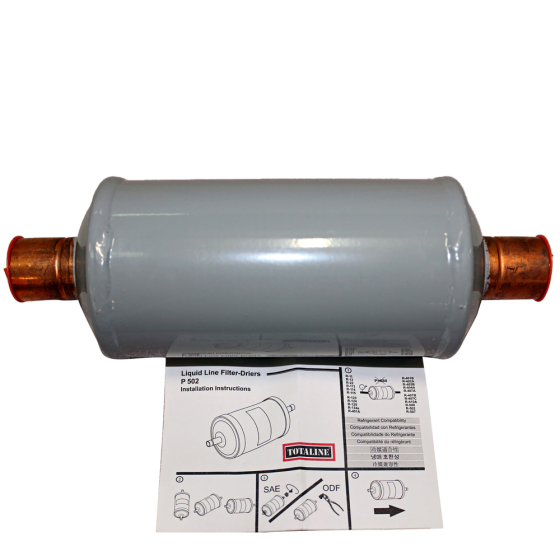

Totaline® Liquid Line Filter Drier, 1-1/8 in. ODF, 41 cu. in. (Sweat)

Item

P502-8419S

SPECIFICATIONS

• Nominal Connection Size: 1-1/8 ODF solder Inches

• Max Working Pressure: 680 Pounds per square inch

• Connections Material and Finish: Copper

• Core Material and Finish: Molecular sieve, activated alumina

• Effective Volume of Desiccant: 41 Cubic Inches

• Filtration: 20 microns

• Height: 3.64 Inches

• Length: 10.39 Inches

• Refrigerant: CFC, HCFC, HFC

• Shell Material and Finish: Painted steel

• Type: Liquid line

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	3.1
Exterior Dimensions (D) (inches)	3.900000
Exterior Dimensions (W) (inches)	11.700000
Exterior Dimensions (H) (inches)	4.000000
Shipping Weight (lbs)	3.100000
