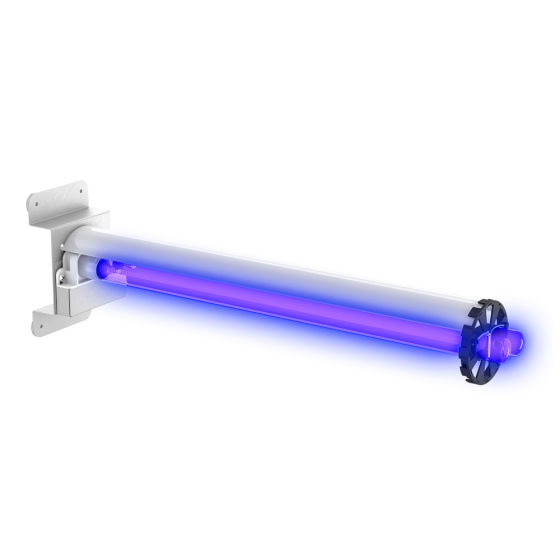

Totaline® Dual UV Germicidal Purification Lamp 16", 24/120V, 36W
Item
UV2-FC-D-16
FEATURES
The Totaline® Germicidal Purification unit is a potent UVGI, non-ozonating Ultraviolet air treatment system. It features non ozonating lamp, Dual 36 watt-254 nanometer UVC lamps, in combination with proprietary anodized aluminum parabolic reflectors. This tandem system helps enhance UVC output creating higher potency in a convenient and versatile design. Magnetic bases allow quick retrofit and are fully reversible for Delta plate installations. The Totaline Germicidal Purification unit helps disinfect & deactivate airborne molds, bacteria, virus and microorganisms in addition to coil irradiation & surface treatment. Lamps are 9000 HR.
SPECIFICATIONS
• Electrical Power: 24/120V• Lamp Dimensions: (16”) 16”x.75 dia(x2)
• Lamp Life (Hours): 9,000
• Lamp Wattage: 36
• Lamp Type: 254 UVC
• UV Output (uw/cm @ 2.5’): 204
• Amp Draw: 1.5/0.35
• Replacement UV Lamp: UV2-FC-16-LP
INCLUDES
• Magnetic mounting base• 24/120 volt ballast
• 6 foot UV resistant power cord and all hardware
| Electrical | |
|---|---|
| Voltage | 24/120 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 25.000000 | Exterior Dimensions (H) (inches) | 13.000000 | Shipping Weight (lbs) | 5.000000 |
| Specification | |
|---|---|
| Reduces VOCs | No | Produces Ions | No |
