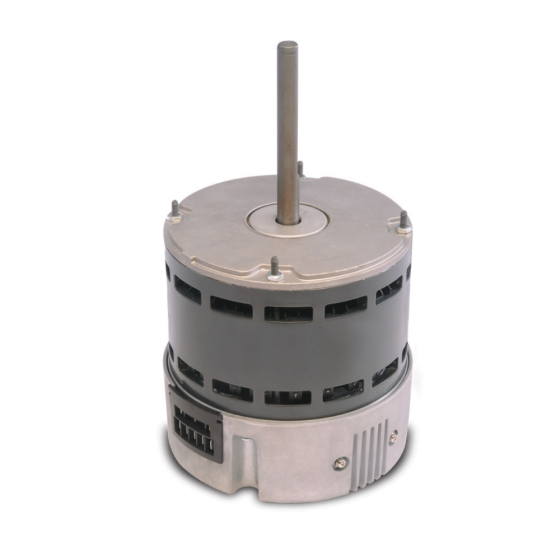

Totaline® FLEXPSC Multi-Horsepower Direct-Drive Blower Motor Upgrade 3/4-1 HP, 1075 RPM, 115-208/230Vac, 8.0-11.0A, 5 Speed, 40 °C (ECM)

Item

P257-FLEXPSC51

FEATURES

This is a great upsell motor for homeowners that are ready to add IAQ options without replacing the entire furnace.

Addresses homeowner hot buttons like: uneven temperatures in the home, allergies, lower utility bill, control dust.

Continuous airflow can help allergens and dust to be filtered and provides more even temperatures throughout the home.

• Connects directly to standard PSC furnace and air-handler boards

• Fits variety of direct drive blower motor applications

• High Efficiency Design (82% efficient verus standard PSC 60%)

• Dual Voltage 115-230V Single Phase

• Ins Class B

• UL and CSA Recognized

• Uses Existing Mounting Bracket or any 48 Frame Mount

• Essential Truck Stock Motor

• Bearing Type: Ball

• CSA Listed: True

• Description: PSC

• Enclosure Type: TEAO

• Frame Size: 48

• Frequency: 60 Hertz

• Rotation: CCW/CW

• Phase: 1

• Horsepower: ¾ - 1

• RPM: 1075

• Voltage: 115-208/230

• RPM: 1075

• Speeds: 5

• Amperage: 8.0/11.0

• Ambient Temperature: 40 °C

• Type Motor: Permanent Split Capacitor to ECM

• Shaft Diameter: ½ Inches

• UL Listed: False

• UL Recognized: True

Electrical
Amps	11
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	18.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	8.000000
Shipping Weight (lbs)	20.000000
