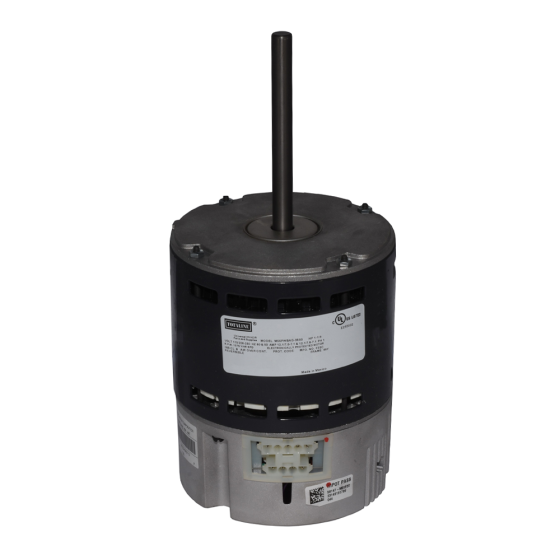

Totaline® FLEX16 Multi-Horsepower Direct Drive Blower Motor 1/3-1/2 HP, 1075 RPM, 115-208/230Vac, 3.8-6.4A, 40 °C (ECM)

Item

P257-FLEX1662

FEATURES

Replaces 16-Pin 2.0, 2.3 and EON Variable Speed Blower Motors, Using 24v or PWM

• Same connections as OEM

• Adjustable airflow and rotation with EZ Interface

• Uses Existing Mounting Bracket or any 48 Frame Mount

• 50/60 Hz, 1Ph

• Ins Class B

• UL and CSA Recognized

• Bearing Type: Ball

• CSA Listed: True

• Frame Size: 48

• Frequency: 50/60 Hertz

• HP: 1/2, 1/3 Horsepower

• UL Listed: False

• UL Recognized: True

• Voltage: 115/208/230

• Height: 6.8 Inches

• Length: 7.4 Inches

• Width: 15.2 Inches

• Weight: 12.6 Pounds

Electrical
Amps	6.4
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	18.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	8.000000
Shipping Weight (lbs)	20.000000
