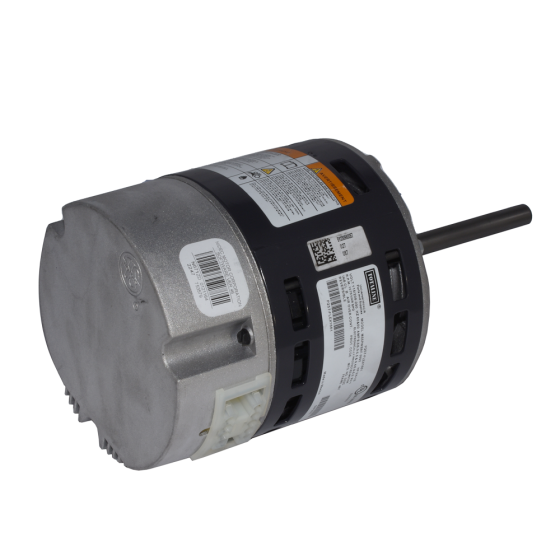

Totaline® FLEX16 Direct Drive Blower Motor 3/4 HP, 1075 RPM, 115-208/230Vac, 5.5-9.3A, 40 °C (ECM)

Item

P257-FLEX1661

FEATURES

Replaces 16-Pin 2.0, 2.3 and EON Variable Speed Blower Motors, Using 24v or PWM

• Same connections as OEM

• Adjustable airflow and rotation with EZ Interface

• Uses Existing Mounting Bracket or any 48 Frame Mount

• 50/60 Hz, 1Ph

• Ins Class B

• UL and CSA Recognized

• Bearing Type: Ball

• CSA Listed: True

• FLA: 9.3 Amps

• Frame Size: 48

• Frequency: 50/60

• Hertz HP: ¾ Horse Power

• Rotation: Reversible

• Number of Speeds: Variable

• RPM: 1075

• UL Listed: False

• UL Recognized: True

• Voltage: 115/208/230

• Weight: 16.16 Pounds

• Height: 6.9 Inches

• Length: 7.1 Inches

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	18.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	8.000000
Shipping Weight (lbs)	20.000000
