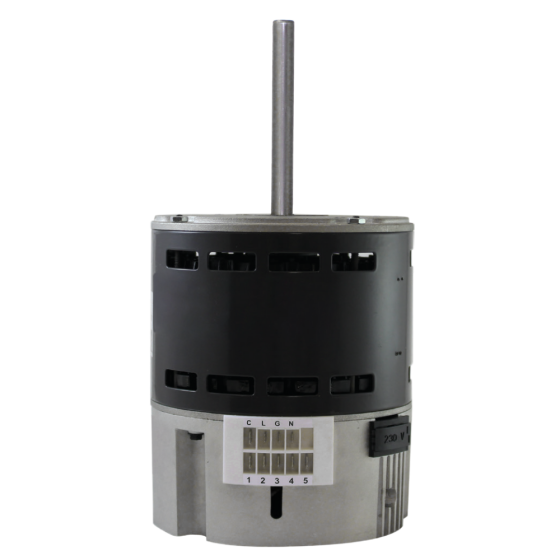

Totaline® FLEX13 Direct Drive Blower Motor 1 HP, 1075 RPM, 115-208/230Vac, 6.5A, 5 Speed, 40 °C (ECM)

Item

P257-FLEX1378D

FEATURES

Replaces ECM X13 Constant Torque Blower Motors

• Ambient: 40 Celsius

• Bearing Type: Ball

• CSA Listed: True

• Enclosure Type: OPEN

• FLA: 6.5 Ampers

• Frame Size: 48

• Frequency: 50/60 Hertz

• HP: 1 Horse Power

• Mounting Method:

• Bolt Rotation: CCW/CW

• Number of Speeds: Variable

• Phase: 1

• RPM: 1075

• Type Motor: ECM

• Shaft Diameter: ½ Inches

• Shaft Length: 5 Inches

• UL Listed: True

• UL Recognized: True

• Voltage: 115/208/230

• Height: 12.35 Inches

• Length: 5.725 Inches

• Width: 5.725 Inches

Electrical
Amps	6.5
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	18.000000
Exterior Dimensions (W) (inches)	8.000000
Exterior Dimensions (H) (inches)	8.000000
Shipping Weight (lbs)	20.000000
