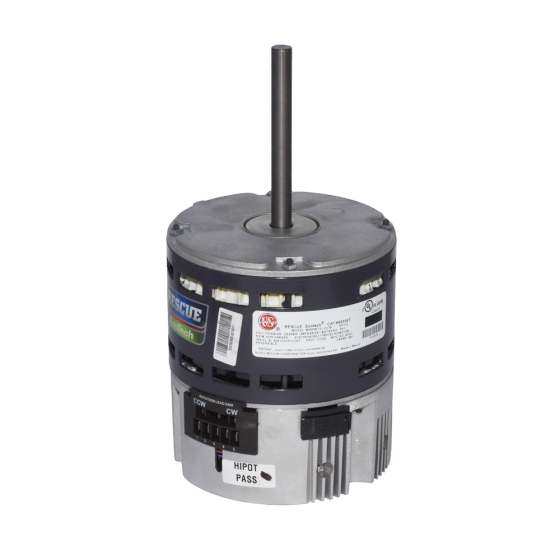

Totaline® Variable Speed Multi-HP Direct Drive Blower Motor 1/4-1/2HP, 1075RPM, 115/208/230Vac, 5 Speed (PSC to ECM)
PRODUCT DETAILS
This is a great upsell motor for homeowners that are ready to add IAQ options without replacing the entire furnace.
Addresses homeowner hot buttons like: uneven temperatures in the home, allergies, lower utility bill, control dust.
Continuous airflow can help allergens and dust to be filtered and provides more even temperatures throughout the home.
• Connects directly to standard PSC furnace and air-handler boards.
• Fits variety of direct drive blower motor applications .
• High Efficiency Design (82% efficient versus standard PSC 60%).
• UL and CSA Recognized.
• Essential Truck Stock Motor.
FEATURES & BENEFITS
• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1/4-1/2
• RPM: 1075
• Number of Speeds: 5
• Rotation: Reversible
• Amperage: 4.1-6.8
• Capacitor: Not Required
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 4.5
Specification | |
---|---|
Ambient Temperature | 40 °C | Motor HP | 1/4 - 1/2 | Motor Type | ECM | Number of Speeds | 5 | RPM | 1075 |
Electrical | |
---|---|
Voltage | 115/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 10.000000 |
