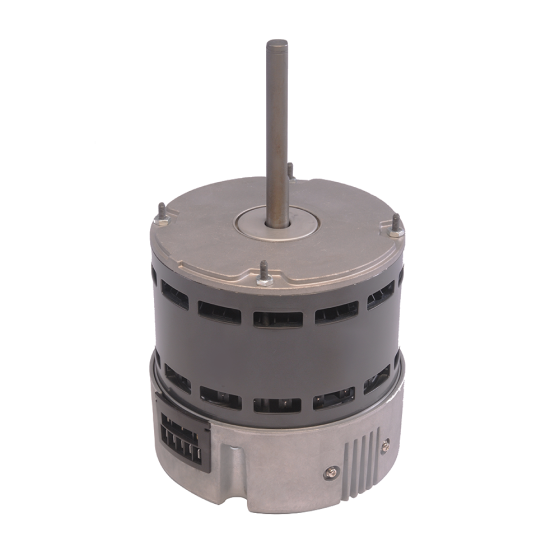

Totaline® Variable Speed Multi-HP Direct-Drive Blower Motor 1/2-1/4HP, 1075RPM, 115/208/230Vac, 5.9A, Not Required, 5 Speed, 40 °C, (ECM)
Item
P257-FLEXPSC40
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Ambient Temperature | 40 °C | Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1/2 - 1/4 | Motor Type | ECM | Number of Speeds | 5 | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 4.5 |
| Electrical | |
|---|---|
| Amps | 5.9 | FLA | 5.9 | Hertz | 60 | Voltage | 115/208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 20.000000 |
