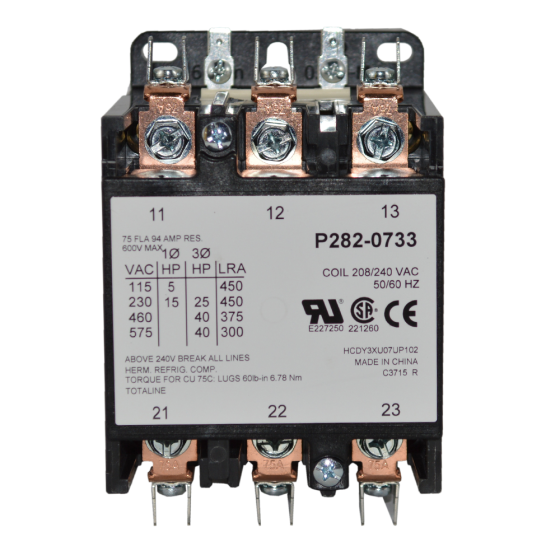

Totaline® Contactor 3 Pole, 208/240Vac Coil, 75FLA, 94RA, Screw Terminals
Item
P282-0733
FEATURES & BENEFITS
• 3 Pole.• FLA: 75.
• Resistive Amps: 94.
• Coil Voltage: 208/240Vac.
• 450LRA @ 240Vac, 375LRA @ 480Vac, 300LRA @ 600Vac.
• Terminal Type: Screw.
• 2 Quick Connections Per Pole.
| Electrical | |
|---|---|
| FLA | 75 | Hertz | 60 | Voltage | 120/240/480/600 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 208/240Vac | Poles | 3 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 1.000000 |
