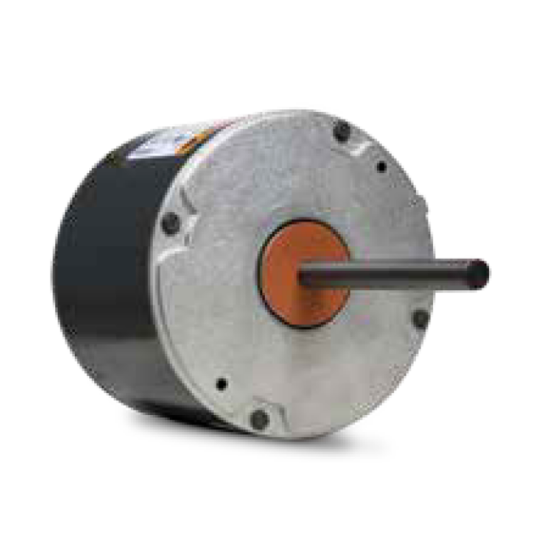

Totaline® Condenser Fan Motor 1/4HP, 1075RPM, 208/230Vac, 1.5A, 5µF/370Vac, 1 Speed, 70 °C, (PSC)

Item
P257-3732HS
  • California Prop 65

PRODUCT DETAILS

Totaline High Temperature Condenser Fan Motors feature 70°C (158°F) Ambient Design. All angle mounting position for universal versatility.


FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 1.5
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: F
• Ambient Temperature: 70 °C
• Shaft Size: 0.50 x 6.0

Specification
Ambient Temperature 70°C
Bearing Type Ball
Motor Frame 48
Motor HP 1/4
Motor Type PSC
Number of Speeds 1
RPM 1075
Shaft Diameter 0.50
Electrical
Amps 1.5
FLA 1.5
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 14.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 7.000000
Shipping Weight (lbs) 20.000000
