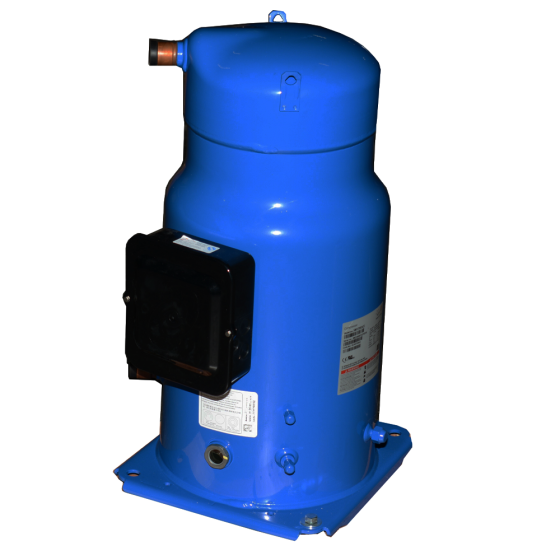

Totaline® Hermetic Scroll Compressor R22, 174,443BTU, 208/230Vac, Three Phase

Item
P04017451
  • California Prop 65

FEATURES & BENEFITS

• Compressor Type: Scroll
• BTU Rating: 174,430
• Refrigerant: R22
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
Electrical
Hertz 60
Phase 3
RLA 53.6
Voltage 208/230
Specification
BTU Rating 161 to 200kBTU
Suction Line Height 6.5"
Discharge Line Height 24.8"
Discharge Line Size 1-1/8"
Compressor Type Scroll
Refrigerant R22
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 245
Exterior Dimensions (D) (inches) 24.000000
Exterior Dimensions (W) (inches) 24.000000
Exterior Dimensions (H) (inches) 33.000000
Shipping Weight (lbs) 245.000000
