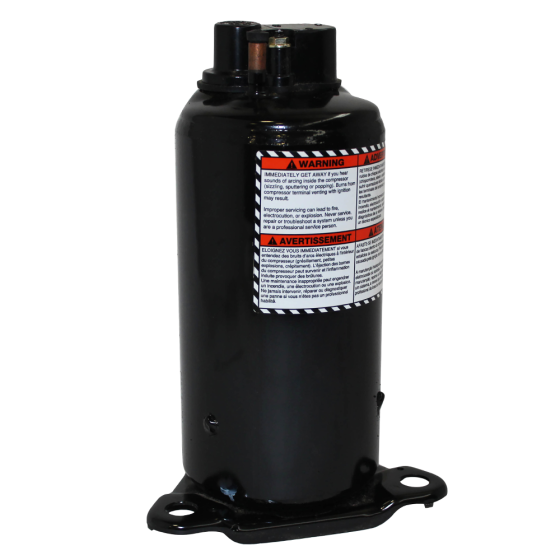

Totaline® Hermetic Rotary Compressor R22, 13,200BTU, 265Vac, Single Phase
Item
P0311391
FEATURES & BENEFITS
• Compressor Type: Rotary• BTU Rating: 13,200
• Refrigerant: R22
• Voltage: 265Vac
• Single Phase
• Capacitor Rating: 25/440µF
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 4.8 | Voltage | 265 |
| Specification | |
|---|---|
| BTU Rating | 11 to 15kBTU | Suction Line Height | 8.8" | Discharge Line Height | 10.9" | Discharge Line Size | 5/16" | Compressor Type | Rotary | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 31 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 31.000000 |
