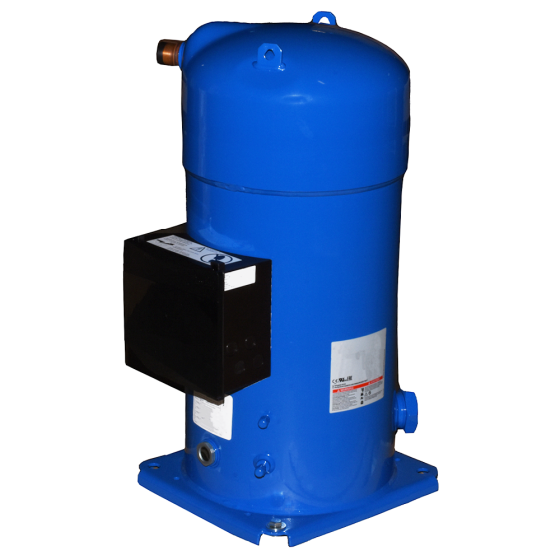

Hermetic Scroll Compressor R410A, 317,775BTU, 460Vac, Three Phase
Item
P045-31772
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 317,753
• Refrigerant: R410A
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 46.4 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 301 to 400kBTU | Suction Line Height | 13" | Discharge Line Height | 26.1" | Discharge Line Size | 1-1/8" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 365 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 37.000000 | Exterior Dimensions (H) (inches) | 24.000000 | Shipping Weight (lbs) | 365.000000 |
