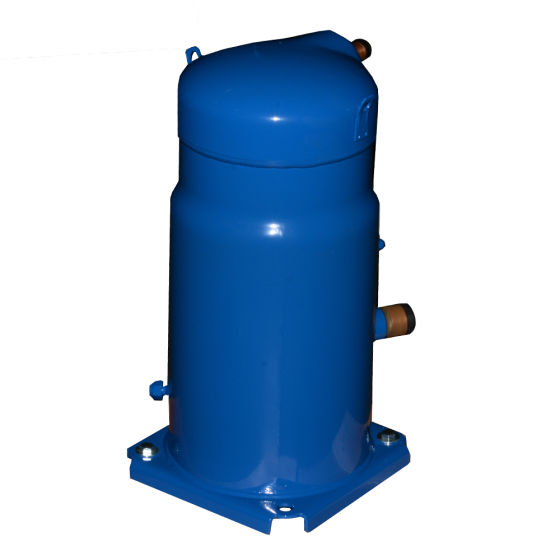

Hermetic Scroll Compressor R22, 125,553BTU, 208/230Vac, Three Phase
Item
P040-12551
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 125,530
• Refrigerant: R22
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 35.7 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 111 to 130kBTU | Suction Line Height | 7" | Discharge Line Height | 20.3" | Discharge Line Size | 7/8" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 193 | Exterior Dimensions (D) (inches) | 23.500000 | Exterior Dimensions (W) (inches) | 30.000000 | Exterior Dimensions (H) (inches) | 23.500000 | Shipping Weight (lbs) | 193.000000 |
