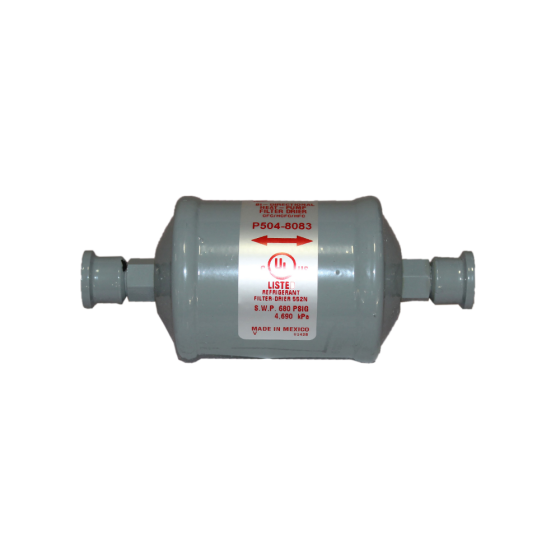

Totaline Bi-Flow Filter Drier 3/8" SAE Male Flare 8cu. in.
Item
P504-8083
PRODUCT DETAILS
Totaline New Bi-Directional Filter Drier provides heat pump system protection in heating and cooling cycles Summer & Winter with one compact unit. It reduces complex piping and the resulting costs.
FEATURES & BENEFITS
• For use with CFC & HCFC refrigerants.• Removes moisture, acids and solids.
• Bi-Directional Eliminates need for external check valves.
• Sealed type.
• Corrosion resistant epoxy powder paint finish.
• May be mounted in any position.
• Reduces compressor maintenance.
• Solid copper sweat connections.
• Desiccant blend - 75% molecular sieve & 25% activated alumina.
• Filtration: 40 microns
• Maximum Working Pressure: 680 PSIG
• UL/CUL file number: SA3124
• Desiccant Volume: 8cu. in.
• Connection Inlet Size: 3/8" SAE Male Flare
• Connection Outlet Size: 3/8" SAE Male Flare
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 1.150000 | Exterior Dimensions (H) (inches) | 2.900000 | Shipping Weight (lbs) | 7.000000 |
