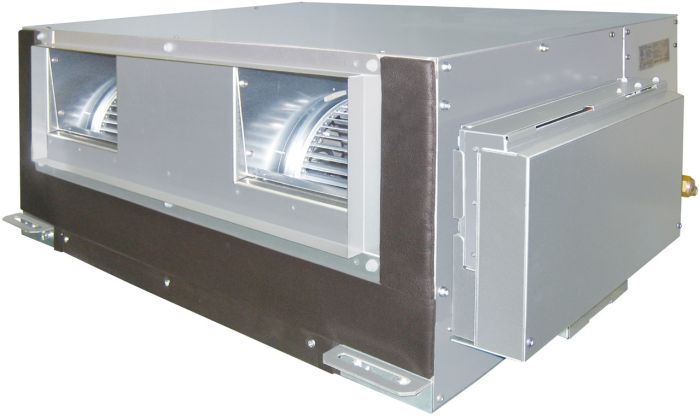

Toshiba Carrier High Static Duct Indoor Unit

Item
MMD4
  • California Prop 65

Toshiba Carrier VRF

High Static Ducted Indoor Unit

30,000 to 96,000 Btuh
2.5 to 8.0 Tons

Toshiba Carrier High Static Ducted indoor units can handle higher static to support longer ductwork for a given space and are ideal for hideaway applications serving multiple zones.

Compatible Outdoor Units

The MMD4 fan coil is matched with the MMYF heat recovery unit or the MMYH heat pump.

Product Features

  • Available in 5 different capacities
  • 208-230V/1/60Hz voltage
  • Up to 1" of external static
  • AC fan motor
  • Single fan speed

Reliability Features

  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant
  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL and ETL, Canada standards

Installation Features

  • Factory provided controls
  • Single point electric connections
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 1.000000
Exterior Dimensions (W) (inches) 1.000000
Exterior Dimensions (H) (inches) 1.000000
