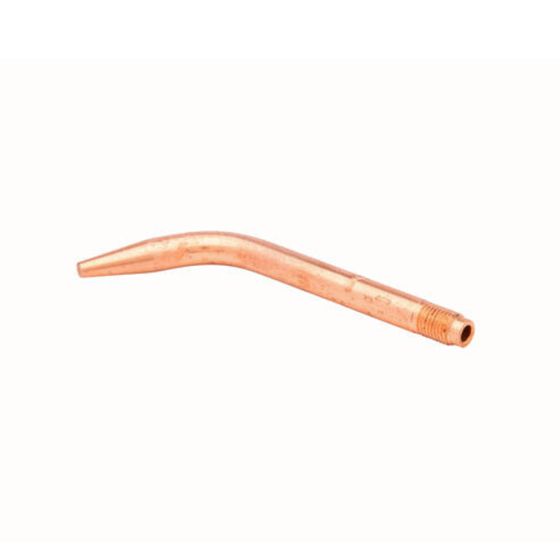

Harris® 5090-2 Welding/Brazing Tip #2
APPLICATIONS
Model 5090 is a one-piece acetylene tip for welding/brazing torches. This tip is manufactured using environmentally-friendly tellurium copper that has excellent machining properties resulting in a higher quality tip. It is precision drilled and swaged for more precise and consistent flames. Model 5090 uses a universal mixer for sizes 0-10 eliminating the expense of using a different mixer for every tip size. The tip has a metal-to-metal contact seat virtually eliminating the possibility of leaks and the need for thread sealants.
FEATURES & BENEFITS
• Constructed of tellurium copper
• Metal-to-metal seat virtually eliminates leaks
• Precision drilled and swaged for more precise and consistent flames
• Uses Harris universal mixer sizes 0-10
• Typical applications include maintenance, metal art production, brazing, etc.
• Engraved with tip size for easy identification
• One year manufacturer's warranty
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 2.000000 |
