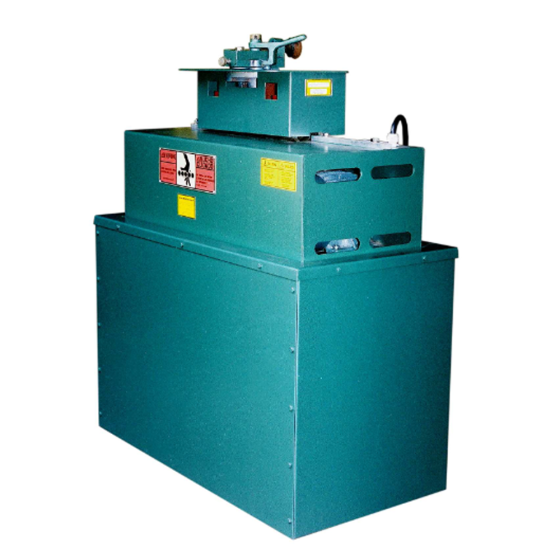

Tin Knocker Pittsburgh Roll Former 24 Ga, 1/2 HP, 1,700 RPM, 115Vac
Item
TK-24GAPITTSBURGH
FEATURES
On the job site or in the shop, this portable little roll former is a work horse for 24 gauge and lighter material. It is available with power flanging attachment and is perfect for field use. Steel stand included.
SPECIFICATIONS
• Weight: 305 lbs• Dimensions: 41 x 25 x 30 in
• Capacity: 24 Gauge Mild Steel
• Motor: 1/2 HP, 1700 RPM, 115 Volt, Single Phase, 60 Hz – Standard (230/1/50 available)
• Depth of Pocket: Approx. 5/16″ (7.9mm) with hammer edge of 3/8″ (9.53mm)
• Speed: Approx. 35 FPM
• Flange Height: 3/16″ (4.76mm)
• Dimensions Roll Former: 30″ x 14″ x 20″ (762mm x 356mm x 508mm)
• Dimensions Stand: 35″ x 14″ x 24″ add 6″ around for shipping
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 305 | Exterior Dimensions (D) (inches) | 41.000000 | Exterior Dimensions (W) (inches) | 30.000000 | Exterior Dimensions (H) (inches) | 25.000000 | Shipping Weight (lbs) | 350.000000 |
