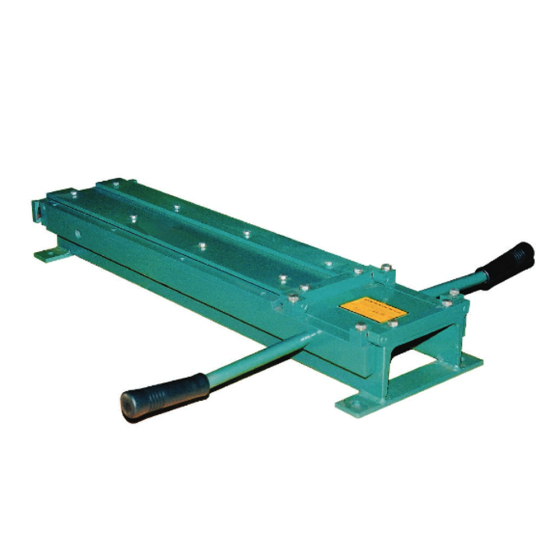

Tin Knocker Cheek Bender 20 Ga, 24" Bend Length
Item
TK24CHEEK
FEATURES
For real production! This beefy little 24 inch, two sided cheek bender is built to last. Bench mounted, this machine comes ready for service. Consistent bends are a certainty due to the two-way trunnion keeping the bending apron in position at the origin of the bend. Adjusts for 1/4″ to 7/8″ bends (6.35mm – 22.2mm).
SPECIFICATIONS
• Weight: 96 lbs.• Dimensions: 40" x 12" x 10"
• Capacity: 20 Ga. Mild Steel (Galvanized) x 60″
• Bend Length: 24″
• Dimensions: Shims are required for 28 Ga and lighter material
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 96 | Exterior Dimensions (D) (inches) | 40.000000 | Exterior Dimensions (W) (inches) | 12.000000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 130.000000 |
