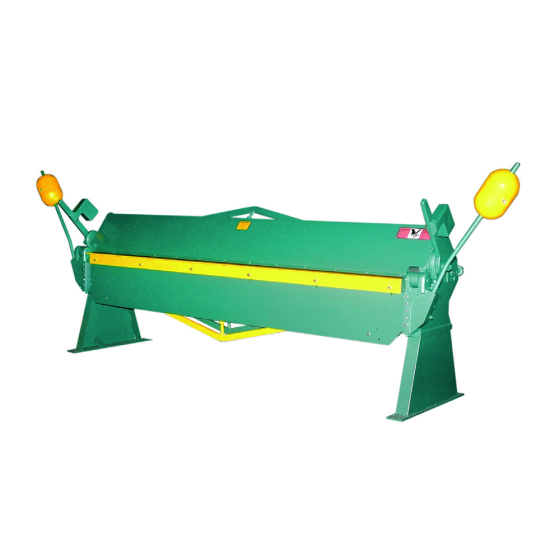

Tin Knocker Straight Leaf Brake 16 Ga, 10', 1"
Item
TK1016
FEATURES
BUILT TO LAST A LIFETIME OF PERFORMANCE.
• The TK 1016 is an industrial quality brake, the kind you need only buy once in a lifetime.• Rugged Spring Steel Nose Bar for long lasting, durable service
• Rebuildable with Bronze Bushings. No steel on steel or wallowed out pivot holes
• Grease zerks at wear points
• Heavy, plate fabricated frame with bronze lined cast and machined hinges
• Brass bushed clamp handles
• Full length Stiffening Bar to help bend to capacity
SPECIFICATIONS
• Weight: 3000 lbs• Dimensions: 160 x 50 x 60 in
• Capacity: 16 Ga
• Bend Length: 10’1″
• Beam Lift: 2 1/4″
• Bolt On Apron Angle: Incl
• Counter Weight: Incl
• Depth of Box or Pan: 2″ 3 sides
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3000 | Exterior Dimensions (D) (inches) | 160.000000 | Exterior Dimensions (W) (inches) | 50.000000 | Exterior Dimensions (H) (inches) | 60.000000 | Shipping Weight (lbs) | 3000.000000 |
