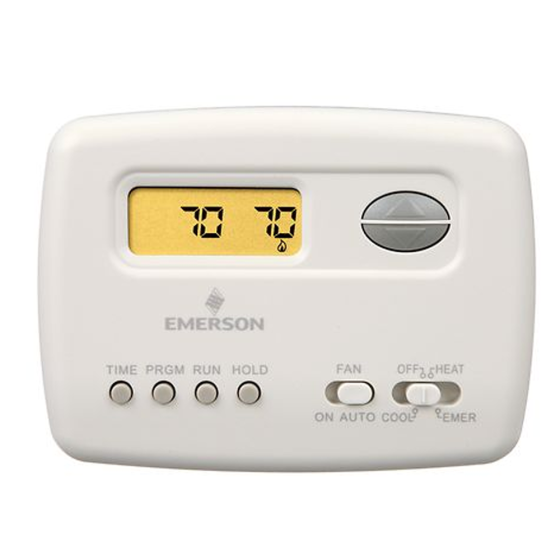

Emerson 70 Series™ 5+2 Day Programmable Thermostat 2H/1C, 24Vac (Heat Pump)

APPLICATIONS

The perfect upgrade from mechanical thermostat available as Heat Pump offering economy and value with proven reliability.

FEATURES

• Horizontal model
• Programmable model
• Selectable Celsius or Fahrenheit temperature display
• Fossil fuel or electric heat compatible
• Electronic accuracy
• Temperature accuracy for customers on a budget

SPECIFICATIONS

• Program Options: Programmable - 5+2 Day
• Program Periods Per Day Options: 4
• Stages: Heat Pump - 2H/1C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• Terminals: R, C, W2, E, Y, O/B, G, L
• 3-Wire Zone Valve Connections: No
• Millivolt Compatible: No
• Economizer Connections: No
• Humidity Control: No
• Heat Pump Dual Fuel Control: No
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Hardwire
• Auto Changeover (Heat/Cool): No
• Fan Option: Auto, On
• Filter Change Reminder: No
• Energy Mgt. Recovery/Early Start: Yes
• Keypad Lockout: No
• Set-Point Temperature Limits: No
• Display Type: 1.2 square in.
• Backlight: Key Press or Continuous with Common Wire
• Voltage: 20 to 30 Vac 50/60 Hz
• Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range: 45 to 99°F (7 to 37°C)
