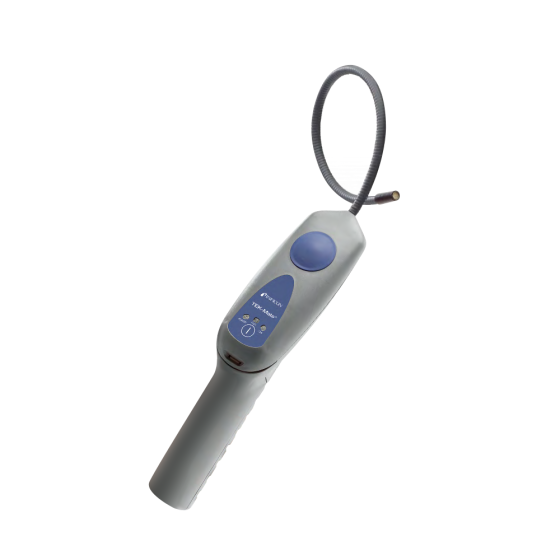

TEK-Mate Refrigerant Leak Detector
Item
705-202-G1
Proven Heated Diode Technology in an Affordable Package
TEK-Mate is the ideal refrigerant leak detector for the light-to-medium duty user who demands reliable leak detection at a budget-friendly price.
Features such as the INFICON heated diode sensor, variable intensity audible and visual alarms and automatic compensation for changing background refrigerant concentrations make TEK-Mate the best bargain in refrigerant leak detectors.
ADVANTAGES
- Detects R22, R134a, R404a, R410a, R448a, R507 (AZ-50), R32, HFO1234yf, and all other CFCs, HCFCs, HFCs, and HFOs
- Runs on 2 "D" cell batteries
- No need for adjustments since the automatic background compensation feature continuously monitors and compensates for changing background "noise."
FEATURES
- Heated diode sensor
- Two year replacement warranty
- Made in the USA
TYPICAL APPLICATIONS
- Residential AC/Refrigeration
SPECIFICATIONS
| Type | TEK-Mate | |
|---|---|---|
| Base unit includes | Sensor, (2) D size alkaline batteries, spare filters, a hard plastic carrying case | |
| Operating temperature | -20 to 50 °C (-4 to 122 °F) | |
| Minimum sensitivity | 0.25 oz./year (7 g/a) | |
| Sensitivity according to EN14624 (R134a) | 2 g/a | |
| Controls | One multi-function button for power and high/low sensitivity selection | |
| Power source | (2) D size alkaline batteries | |
| Battery life | Approximately 16 hours | |
| Weight with batteries | 1.54 lb. (0.7 kg) | |
| Probe length | 15 in. (38 cm) | |
| Certifications | EN 14624:2012, CE marking per Safety and EMC | |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 4.000000 |
