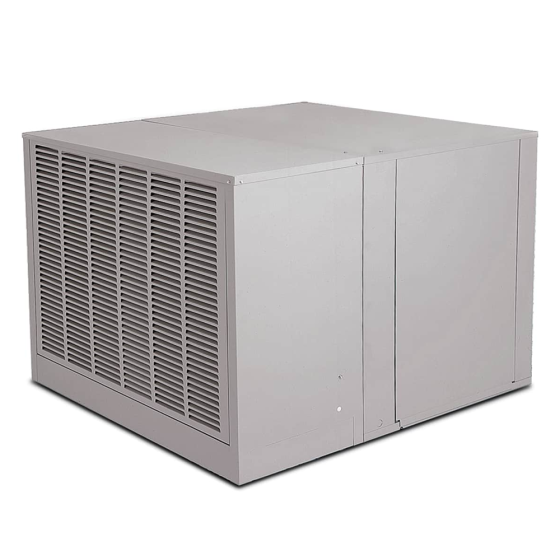

AeroCool® Trophy Residential Evaporative Cooler 12" Rigid Media, Down-Discharge up to 3,270 CFM

Item
TD4812-A
  • California Prop 65

APPLICATIONS

Utilizing single inlet design, the Aerocool® Series provides the ultimate protection available for the longevity of your cooler. Fully lined in a tough plastic shield, the all-metal construction of the wet module is protected from the damaging effects of typical deposits found in most water systems. High efficiency evaporative cooling, low maintenance and long life of the Trophy Series makes this cooler your award winner.

The ultra-efficient 12” media is better choice where maximum cooling efficiency is required.

FEATURES & BENEFITS

• Maximum CFM (3/4 HP): 3,190 @ 0.2 Static Pressure (3,270 @ 0.0 Static Pressure) Note: See submittal for more information on CFM values.
• High quality architectural grade Peblar XT® finish
• Pro-Armor: The premier single inlet cooler with polymeric inner structure that completely shields the wet section from corrosive interaction.
• Galvanized sheet steel is zinc coated at weights rated G40 or G90
• Evaporative media is corrugated cellulose material, impregnated with insoluble anti-rot salts and rigidifying saturates.
• Bearings have an L10 bearing life of 39,000 hours
• Electrical service knockouts are 1/2".
• Water supply line is 1/4" O.D. on both sides.
• Bottom pan drain is 3/4" male hose thread.
• All models ship with 120 V. Low Sump Pumps included. 240 V. pumps are available.
• Optional Pro-Shield weatherizing panel inhibits heat loss and cold air from entering your home during the off season.

Specification
Discharge Orientation Down-Discharge
Maximum CFM 3,270
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 199
Exterior Dimensions (D) (inches) 42.000000
Exterior Dimensions (W) (inches) 42.000000
Exterior Dimensions (H) (inches) 28.000000
Shipping Weight (lbs) 199.000000
