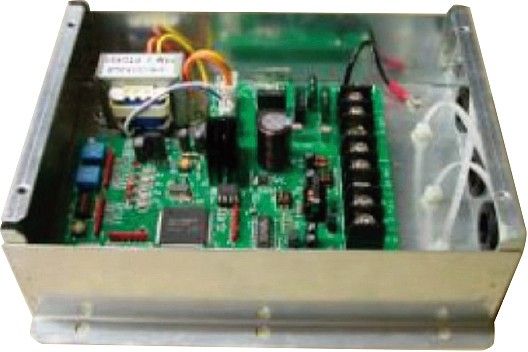

TCS-net Relay Interface

Item
BMSIFLSV4UL
  • California Prop 65

Toshiba Carrier VRF

BACnet® System - TCS-NET Relay Interface

The BACnet System enables the communication between the Building Automation System (BAS) and VRF unit, allowing the customer to control the Toshiba Carrier system from a centralized location.

Compatible Indoor Units

MMU2 – 4-Way Cassette
MMUM – Compact 4-Way Cassette
MMC1 – Underceiling
MMK3 – High Wall
MMDB – Concealed Duct
MMD4 – High Static Duct
MMDP – Slim Duct
40TCQ – Vertical AHU

System Functions

  • Open network protocol
  • Maximum of 128 indoor units per BACnet® System (up to 8 TCS-NET Relay Interfaces per BACnet system)
  • The TCS-NET Relay Interface is used to connect the VRF system to the BACnet system

Controlling Functions

  • ON/OFF
  • Operating mode
  • Temperature settings
  • Fan speed
  • Louver
  • Permit/prohibit local remote controller

Monitoring Functions

  • ON/OFF
  • Operating mode
  • Temperature settings
  • Fan speed
  • Louver
  • Permit/prohibit local remote controller
  • Error code/status
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3.75
Exterior Dimensions (D) (inches) 8.000000
Exterior Dimensions (W) (inches) 10.500000
Exterior Dimensions (H) (inches) 3.500000
Shipping Weight (lbs) 7.000000
