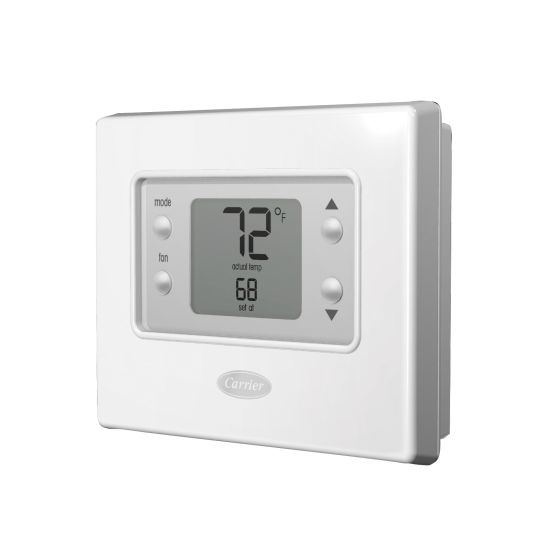

Carrier® Comfort™ Series Non-Programmable Thermostat 1H/1C, 24Vac/3Vdc (Conventional)
Item
TCNAC01A
APPLICATIONS
This Comfort™ non-programmable, large-screen thermostat is an easy to use model that provides the most sought – after features for keeping your home comfortable. It's a breeze to maximize your comfort using this electronic thermostat configured for systems using an air conditioner for cooling.
FEATURES
• Continuous display back-lighting configurable
• Auto changeover available
• Non-volatile memory to retain settings during a power outage
• Optional battery operation
• English/Metric units selection
• Keypad lockout
• RC / RH power compatible
• Configurable setpoint limits
• 1-stage heat / 1-stage cool
• Input volts/amps: 24VAC, 3 VA
• Terminals: W, Y, G, C, Rc, Rh
| Specification | |
|---|---|
| Stages (Conventional) | 1 Heat, 1 Cool | Touchscreen | No | WiFi Capability | No | Remote Sensing Capability | No | Power Method | Hardwire (24Vac)/Battery (3Vdc) | Key Pad Lockout | Yes | Humidification Controls | No | Filter Indicator | No | Battery Backup | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.100000 | Exterior Dimensions (W) (inches) | 5.100000 | Exterior Dimensions (H) (inches) | 4.100000 | Shipping Weight (lbs) | 3.000000 |
