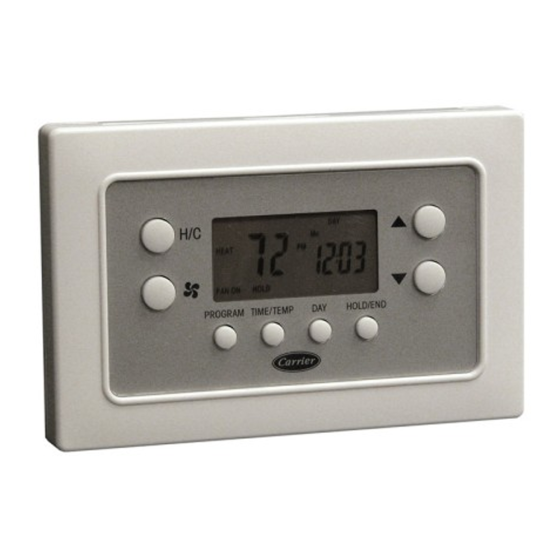

Carrier® Base Series 5+2 Day Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA - Conventional)
Item
TBPAC01A
FEATURES & BENEFITS
• Non-volatile memory to retain settings during a power outage
• English/Metric units selection
• Modes include Off, Cool, Heat
• 5-2 days programmable
• Operation with batteries optional
• 1-stage heat / 1-stage cool
• Terminals: W, Y, G, R, C
| Specification | |
|---|---|
| Backlight | Yes | Permanent Hold | Yes | Program Options (Days) | 5+2 | Stages (Conventional) | 1 Heat, 1 Cool | Touchscreen | No | WiFi Capability | No | Temporary Hold | Yes | Remote Sensing Capability | No | Power Method | Hardwire (24Vac)/Battery (3Vdc) | Key Pad Lockout | Yes | Humidification Controls | No | Filter Indicator | No | Battery Backup | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 5.500000 | Exterior Dimensions (H) (inches) | 3.600000 | Shipping Weight (lbs) | 3.000000 |
